Characteristics:

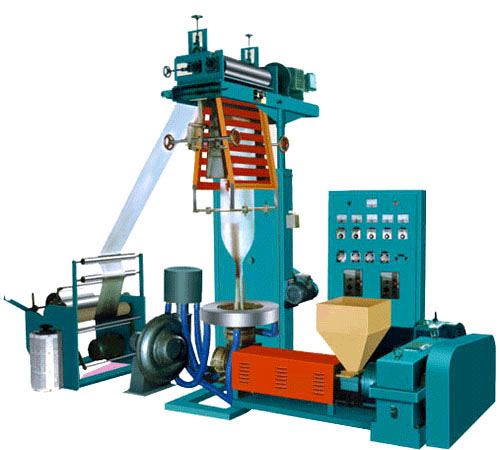

The cylinders and the screw stems of model SJ-45-50 extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment. FM-600 auxiliary machine can be freely adjusted within the limits of 700mm according to the technological requirements of different materials, and is fitted with a plug-in plate mechanism for making vest bag, The double-rolling and double-cutting coiling unit adopts torque motor to keep proper tension and make even and roll-changing easy.
Use:
It is used for blowing the various plastic film of low density polyethylene(LDPE), high density polythylene(HDPE)and linear low density polyet-hylene(LLDPE)etc,Which are widely used for packing food,fruit, garments, textile, barbage bag and vestbag other civil and industrial products, etc and for vestbag.
Main Technical Variables：
|
Model |
SJ-45FM500 |
SJ-55FM650 |
SJ-60-FM850 |
|
Screw Diameter(mm) |
45 |
50 |
55 |
|
Screw Ratio (L: D) |
1：24-28 |
1：24-28 |
1：24-28 |
|
Screw Speed(r/min) |
10-110 |
10-110 |
10-110 |
|
Power of Main Motor(kw) |
7.5 |
7.5 |
11 |
|
Max extrude output(kg/h) |
25 |
30 |
40 |
|
Max. Folding Width of Film(mm) |
450 |
600 |
800 |
|
Single-sided Thickness of Film(mm) |
0.006-0.10 |
0.006-0.10 |
0.006-0.10 |
|
Total Power(kw) |
18 |
20 |
24 |
|
Weight of Machine(kg) |
1800 |
2000 |
2500 |
|
Overall Dimensions(mm) |
4000×1600×3200 |
4200×1800×3400 |
4400×2000×3600 |

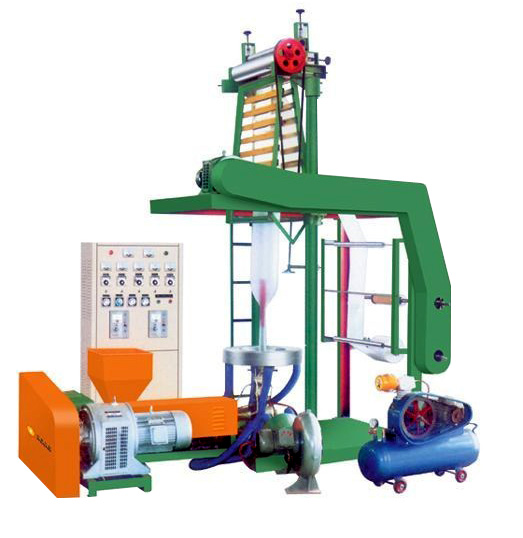

Main Technical Variables：
|
Model |
SJ-45FM600type |
SJ-50FM850type |
|
Screw Diameter(mm) |
45 |
50 |
|
Screw Ratio (L: D) |
1:28 |
1:28 |
|
Screw Speed(r/min) |
10-100 |
10-100 |
|
Power of Main Motor(kw) |
11 |
15 |
|
Max extrude output(kg/h) |
30 |
50 |
|
Max. Folding Width of Film(mm) |
600 |
800 |
|
Single-sided Thickness of Film(mm) |
0.006-0.10 |
0.006-0.10 |
|
Total Power(kw) |
22 |
28 |
|
Weight of Machine(kg) |
2200 |
2600 |
|
Overall Dimensions(mm) |
4000х2000х2800 |
4600х2300х3800 |
|
