Introduce:

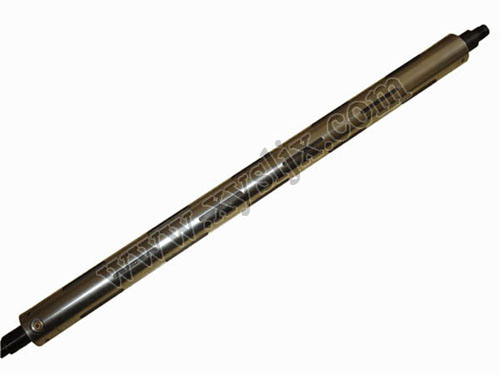

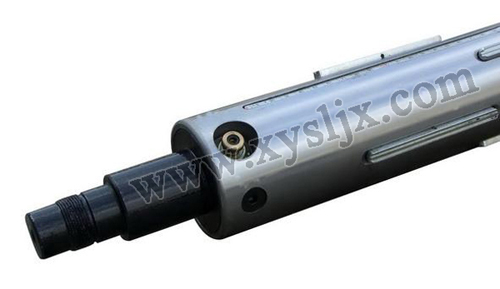

The inflatable shaft adopts foreign advanced production equipment and manufacturing technology, using imported balloon, the shaft is casting by aluminum alloy, shaft body plating chromium, accurately assembled, conveniently to use and long operating life. It can make the shaft of off-axle appearance uniform expansion, thereby lock material barrel, when unloading, press on deflated mouth to deflated, then material barrel can be unloaded.
Performance and advantages:
Inflatable shaft in practical applications, it has advantages of convenient and quick operation, without damage rolls etc.
Product usage:
It is widely used in printing, cutting, coating, compounding and other machineries’ releasing and winding.
Main technical parameters:
|
Winding barrel core Standard |
1.5 " |
2 " |
3 " |
4 " |
4.5 " |
6 " |
8 " |
|
Diameter before blow air(mm) |
Ø36 |
Ø49 |
Ø74 |
Ø100 |
Ø120 |
Ø150 |
Ø200 |
|
Diameter after blow air (mm) |
Ø40-Ø42 |
Ø53-Ø55 |
Ø79–Ø82 |
Ø104–Ø106 |
Ø124–Ø126 |
Ø155–Ø158 |
Ø205–Ø208 |
|
