USE：
This machine uses LDPE and LLDPE to products casting stretch film, which widely used in packing area for building material, auto parts, hardware parts etc.

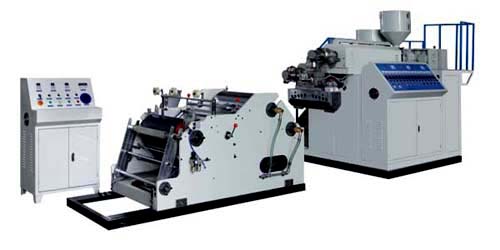

SDH-500/1000 automatic stretch film co-extruder with following feature: low noise, stable running, especially winding part controlled by PLC program.
OPTIONAL EQIPMENT：
1) AUTO LOADER 2) AUTO DRY HOPPER 3) MOTORIZE NET CHANGER
4) HYDRANULIC NET CHANGER 5) AIR SHAFT 6) GULE PUMP
Main Technical Variables:
|
Model |
SDH-500(double) |
SDH-1000(double) |
|
Diameter of Screw Stem |
55mm*2 |
65mm*2 |
|
Major diameter ratio of screw Stem(L/d) |
28:1(L/D) |
28:1(L/D) |
|
Ratio speed of screw stem |
10-120rpm |
10-120rpm |
|
Folding Width of Products |
200-500mm |
1000(500*2)mm |
|
Thickness |
0.015-0.05mm |
0.015-0.05mm |
|
Main motor power |
15kw*2 |
18.5kw*2 |
|
Heating Power |
30kw |
50kw |
|
Max. output(kg/h) |
40 |
100 |
|
Machine weight |
3T |
5.5T |
|
Overall Dimension(L*W*H)mm |
4500*2600*2550 |
7500*4500*3200 |
|
