Features ：

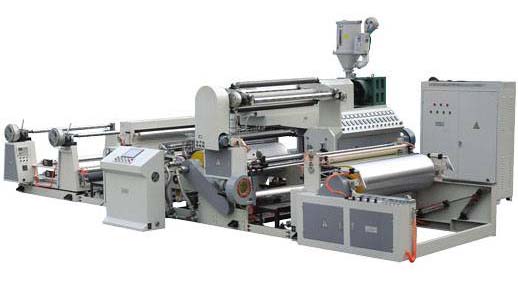

This high-speed extruding film compound machine unit, which is popular model film machine of our factory .the equipment widely applies to film: the base material of mold release paper, cup paper bowl paper, melon seeds bag paper, clean bag paper, brand paper, non-woven cloth, gauze, aluminum foil. The finished film is high fastness, fine effect, equal thickness, and fine sealed capability. Standards of various kinds are up to the international standards.
This is a set of discharge, drying, surface treatment, composite, cutting edge, suction side, rolling into one, using optical tracking; Electric spark processing; line speed, feed length digital display; automatic constant tension, temperature, automatic control and other advanced technologies.
Main technical variables ：
|
ITEM/TYPE |
SXYM-800 |
SXYM-1100 |
SXYM-1300 |
SXYM-1600 |
SXYM-1800 |
|
Length of mold lip |
900mm |
1200mm |
1400mm |
1800mm |
2000mm |
|
Width of finished product |
400-700mm |
500-1000mm |
600-1250mm |
800-1500mm |
900-1700mm |
|
Max compounding speed |
80-110m/min |
80-110m/min |
80-110m/min |
60-110m/min |
60-110m/min |
|
Width of shower film |
0.01-0.03mm |
0.01-0.03mm |
0.01-0.03mm |
0.01-0.03mm |
0.01-0.03mm |
|
L/D ratio for screw |
32:1 |
32:1 |
32:1 |
32:1 |
32:1 |
|
Max. diameter for roll unwinding and rewinding |
ø1200mm |
ø1200mm |
ø1200mm |
ø1200mm |
ø1200mm |
|
Overall size |
12000×6000×
3200mm |
12500×7000×
3200mm |
1300×8000×
3200mm |
12000×9000×
3200mm |
13000×12000×
3200mm |
|
Power |
60kw |
70kw |
80kw |
100kw |
130kw |
|
Compounding/mirror cool roll |
ø510mm |
ø510mm |
ø510mm |
ø510mm |
ø510mm |
|
Applicable for base material |
BOPP BOPPET BOPA CPP CPE |
|
