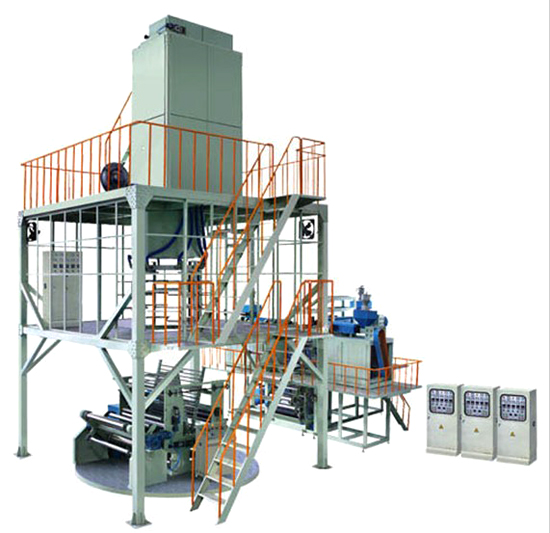

XJSM-1200 XJSM-1800 Three-layer co-extruding film blowing machine unit for polyolefin of heat shrink film(POF)



Use and Characteristics:

This unit,a three-layer co-extruding film blowing machine unit for polyolefin of heat hrink film(POF), is independently developed at the basis of foreign technology. It is integrated with technologies like three-layer co-extruding conical surface overlying die, infrared heating system, adjustable thermocomtroller, infrared temperature testing system, tension controller and double bench automatic gap, surface and central revolving rolling. It is applied to manufactruing heat contracted films like PP/PE/PP-structrued POF. It is characteriaed by high transparency, lower temperatrue resistance, durability in mixing and shrinking, high shrinkage. Its high shrinkage rate can be controlled through modifying the formula and changing the technoloty.The heat contracted film is widely applied to packing daily foods, beverage or drinks, medicine, healthcare products, stationary, cosmetics, handicraft articles, new spaper and books, video products electric spare parts or attachment, and toys. It is an environmental protection style packaging materials.

Main Technical Variables:

Model

XJSM-1200

XJSM-1800

Max. Folding Width of Film

1000mm

1600mm

Film thickness

0.012-0.03mm

0.012-0.03mm

Max extruding volume

110kg/h

150kg/h

Applicable materials

PP,PE

PP,PE

In-out layer Screw Diameter

¢40mm

¢55mm

Middle layer Diameter of Screw

¢65mm

¢75mm

Screw L/D Ratio

30:1

30:1

Screw Speed

100r/min

100r/min

In-out layer motor Power

11Kw

15Kw

Middle layer motor Power

37Kw

45Kw

Max Rolling Dia.

500mm

500mm

Max Rolling Speed

60m/min

60m/min

Total Load Power

260Kw

300Kw

Overall dimension L x W x H (approximate)

10000x5600x11000mm

12000x6600x14200mm

Weight(approximate)

33000kg

38000kg
