USE:

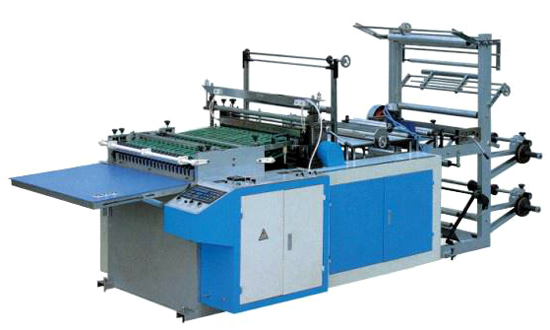

This (RDL) Multifunctional Computer High Frame Thermal Cutting Bag Making Machine is suitable for thermal cutting and bag making of such printing and non-printing plastic films like BOPPOPPand PE, etc. and it is a kind of ideal equipment for making sock bag, towel bag, bread bag and adornment bag, etc.
Performance and Characteristics:
1. The whole machine adopts microcomputer control and material-pulling by stepping motor. (Servomotor control system can be selected and equipped).
2. Arbitrary fixed-length accurate and stable step photoelectric tracking, stopping automatically when the label is lost.
3. Automatic and synchronous two-side tape gluing, automatic punching.
4. Automatic counting and settable counting alarm.
5. Heat-sealing decorative border, automatic constant temperature, firm and smooth seating.
Main Technical Variables:
|
Model |
RDL-700 |
RDL-800 |
RDL-900 |
RDL-1000 |
|
Width of sealing & cutting (mm) |
700 |
800 |
900 |
1000 |
|
Length of sealing & cutting (mm) |
50-700 |
50-700 |
50-700 |
50-700 |
|
Speed of bag-making (pc/min) |
40-140 |
40-140 |
40-140 |
40-140 |
|
Power of motor (kw) |
3.6 |
3.8 |
4.5 |
4.7 |
|
Weight (kg) |
900 |
1000 |
1100 |
1200 |
|
Outline dimension (L×W×H) (mm) |
3500×1100×1800 |
3500×1200×1800 |
3500×1300×1800 |
3600×1600×1800 | |
