Description：

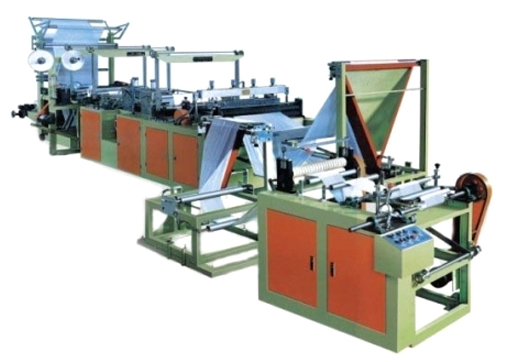

1. This Ribbon-through Continuous—rolled is designed and produced by our company on the basis of advanced technology both in domestic and overseas.
2. The machine adopts computer control system, servo motor structure.
3. With functions such as photocell automatic tracking, blank/ color bag-making shift, microcomputer length setting, and automatic counting. It will automatic alarm when reaching the set figure, and have automatic temperature control.
4. Equipped with mechanical device for functions such as auto cutting, punch hole, half-round hole, strip-go-through, strip moving, side sealing, bottom sealing, point-cutting, folding, continuous rolled and roll separate etc.

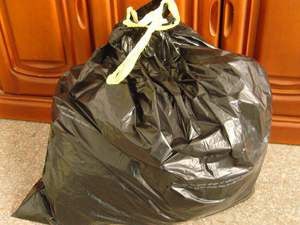

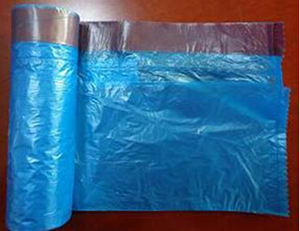

5. This machine can produce continuous-rolled strip-through type garbage bag, continuous-roll flat bag and normal flat bag
6, meanwhile it can cooperate with folding machine and rolls-connecting machine. Featured by full-automatic and high quality. This machine set is suitable for high-density polyethylene, low-density polyethylene plastic film bag maker.

Technical Parameters:
|
Mode type |
RLD-1000 |
RLD-1200 |
|
Max sealing and cutting width |
780mm |
780mm |
|
Max sealing and cutting length |
950mm |
1100mm |
|
Sealing and cutting thickness |
0.01-0.05mm |
0.01-0.05mm |
|
Error in length |
±1mm |
±1mm |
|
Bag making speed |
15-40pcs/min |
15-40pcs/min |
|
Motor power |
8kw |
12kw |
|
Total weight |
1200kg |
1600kg |
|
Overall (L×W×H) |
6300×1700×1950mm |
6300×1900×1950mm |
|
