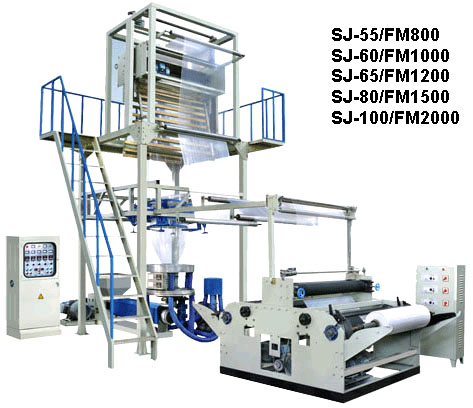

Lifting Rotary Die Head Film Blowing Machine (PE Heat Shrink Film Blowing Machine)


Characteristics:

The cylinder and the screw stems of the above extruders are made of high quality alloy steel
with optimum hardness and strong corrosion resistance which after precision accomplishment
and nitrogen treatment. The auxiliary machine has a platform working table for making operation
easy. The coiling unit adopts torque motor to keep proper tension and make rolling even regular and roll-changing easy.

Use:

It is used to blowing various of PE thermal shrinking membranes which are applied extensively to food,
medicine, beer bottle, material bottle, box, case, cloth reel, floor, glass, all sizes of trays, pottery, tissue, etc

- Inverters Panasonic, the matching speed of the engine
- Device head rotation
- Roller embossing
- Device tab seam
- Knives frontal and slitting film
- Two-winder

Main technical parameters:

Model

SJ-55/FM800

SJ-60/FM1000

SJ-65/FM1200

SJ-80/FM1500

SJ-100/FM1500

Screw Diameter

55mm

60mm

65mm

80mm

100mm

Screw Ratio

L/D28:1

L/D28:1

L/D28:1

L/D28:1

L/D28:1

Screw Speed

10-100r/min

10-100r/min

10-100r/min

10-100r/min

10-100r/min

Power of Main Motor

45Kw

18.5Kw

22Kw

30Kw

55Kw

Main Output

50kg/h

65kg/h

80kg/h

100kg/h

160kg/h

Max Folding Width of Film

800mm

1000mm

1200mm

1500mm

2000mm

Single-sided Thickness of Film

0.01-0.10mm

0.01-0.10mm

0.01-0.10mm

0.01-0.10mm

0.01-0.10mm

Total Power

26Kw

30Kw

42Kw

56Kw

88Kw

Weight of Machine

2300kg

3000kg

3800kg

4600kg

6000kg

Overall Dimensions(mm)

6000×2000×4000

6500×2200×4500

6800×2400×4800

7000×2700×5500

8000×3200×7600
