Usage

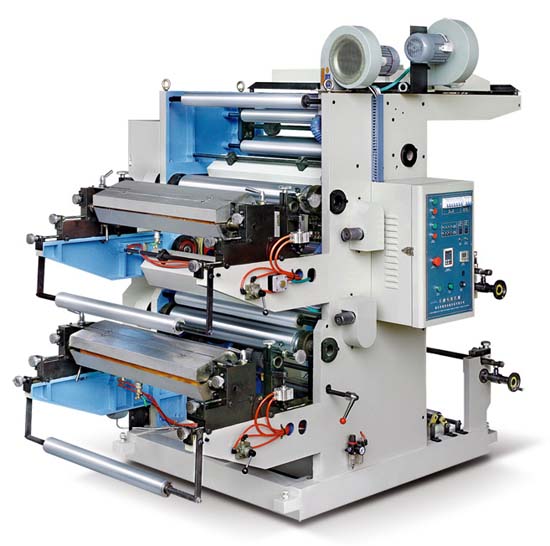

This machine is to use photosensitive resin material as a soft version of the
printing press, commonly known as "aniline printing press." Suitable for printing, non-woven, polyethylene, polypropylene plastic bag, cellophane, web
and other packaging materials, paper packaging for food, supermarket
handbag, vest bag, garment bags and other packaging ideal printing
equipment.
Characteristics
1, easy to operate, starting soft, chose color accurately
2 Meters can be printed upon request, to set the number to the number of automatic shutdown, automatic stop-off material
3, pneumatic move plate cylinder, automatic mixing ink after lifting.
4 reticulate rollers pass ink, ink evenly.
5, safely drying system to meet the high-speed operation, automatic shut down
circuit.
6,360-degree pairs of flower continuously adjusted longitudinal device.
7, frequency control, adapt to different printing speeds.
8, edition of roll carts and shelves are loaded a little action and stop buttons,easy to manipulate the machine installed version
Main technical parameters:
|
Model |
YT-2600 |
YT-2800 |
YT-21000 |
|
Maximum width of printed materials, mm |
600 |
800 |
1000 |
|
Maximum printing width, mm |
560 |
760 |
960 |
|
Print Length Range, mm |
191-914 |
191-914 |
191-914 |
|
Coil diameter, mm |
450 |
450 |
450 |
|
Printing speed, m/min |
5-50 |
5-50 |
5-50 |
|
Plate thickness (including the double-sided plastic bags), mm |
2.38 |
2.38 |
2.38 |
|
Total Power, Kw |
8 |
10 |
12 |
|
Machine Weight, kg |
1800 |
2000 |
2200 |
|
Dimensions, mm |
2300х1860х2145 |
2300х2060х2145 |
2300х2260х2145 |
|
