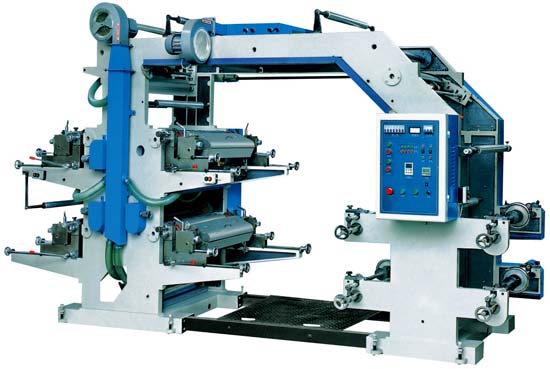

YT Series Four Color Flexo Graphic Printing Machine

Introduction:

This machine is suitable for printing such packing materials as polyethylene, polypropylene plastic bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Feature:

1.Easy operation, flexible starting, accurate color register.

2. The meter counter can set printing quantity according to the requirements, Stop the machine automatically at the set quantity or when the material is cut off.

3. Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.

4. The printing ink is spread by the knurled cylinder with even ink color.

5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.

6.360-degree continuously adjusted longitudinal register device.

7. The imported frequency control of motor speed adapts to different printing speed.

8. There are inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

Technical parameters:

Model of Machine

YT-4600

YT-4800

YT-41000

Max. Width of Printing Material

600mm

800mm

1000mm

Max. Printing Width

560mm

760mm

960mm

Length Range of Printed Product

191-914mm

191-914mm

191-914mm

Max. Diameter of Roll Material

Φ 450mm

Φ 450mm

Φ 450mm

Printing Speed

5-50m/min

5-50m/min

5-50m/min

Thickness of plate (Including Two-sided
Glue Paper)

2.38mm

2.38mm

2.38mm

Total Power

10.87kw

12.5kw

14.37kw

Weight of Machine

3000kg

3500kg

4000kg

Overall Dimensions (mm)

4200×1600×2400

4200×1800×2400

4200×2000×2400
