Specifications

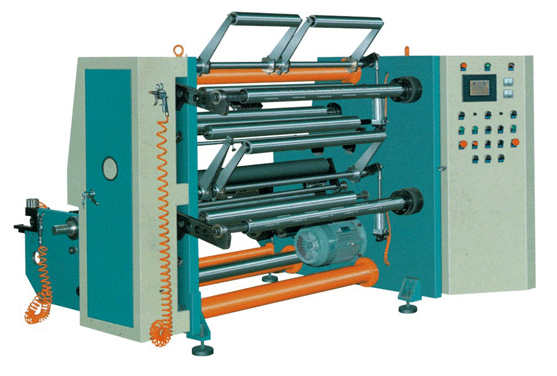

Non woven fabric slitting machine is mainly used for slitting rolled materials like BOPP, PET, CPP, CPE, etc.
Application:
As a general-purpose speedy slitting machine, it is used for slitting rolled materials like BOPP, PET, CPP, CPE, etc. The whole machine performances fast speed smooth rewinding and easy operation.
Main Technical Parameter:
|
Model |
ZDF-700 |
ZDF-1100 |
ZDF-1300 |
ZDF-1500 |
|
Material width (mm) |
700 |
1100 |
1300 |
1500 |
|
Max. unwind diameter (mm) |
700 |
700 |
700 |
700 |
|
Slitting width (mm) |
30-600 |
30-1000 |
30-1200 |
30-1500 |
|
Slitting speed (pc/min) |
260 |
260 |
260 |
260 |
|
tolerance of EPC (mm) |
<±0.5 |
<±0.5 |
<±0.5 |
<±0.5 |
|
Power (kw) |
6.8 |
8.5 |
10.3 |
13.5 |
|
Weight (kg) |
3000 |
3500 |
4200 |
5000 |
|
Outline dimension (LxWxH) (mm) |
2000x1110x1400 |
2400x1110x1400 |
2600x1110x1400 |
2800x1110x1400 |
|
