Specifications:

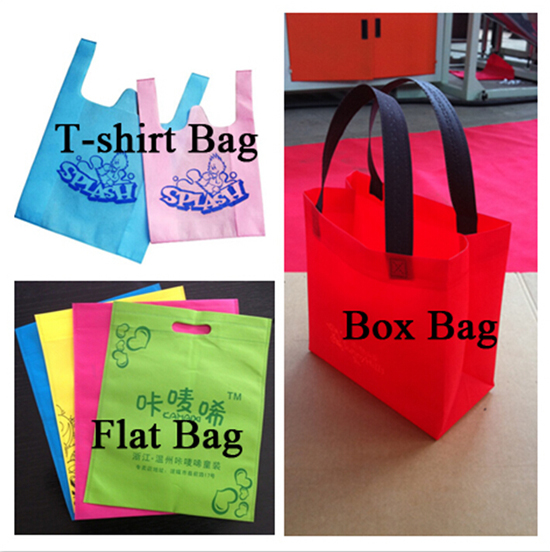

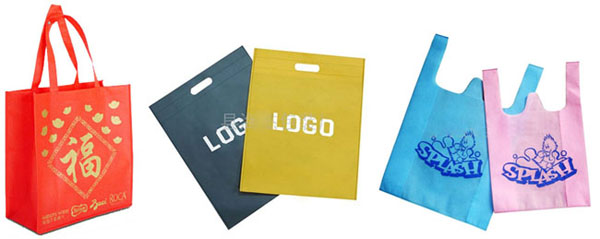

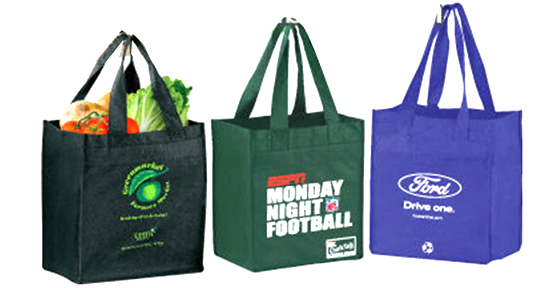

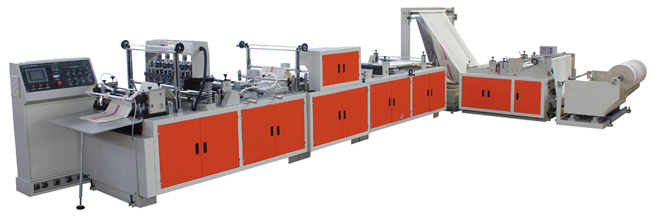

This machine line features multiple functionalities in non-woven bag making industry combining with high productivity and stable quality. The machine adopts non-woven fabric as its raw materials that can produce various types of bags such as box bag, gift bag, handle bag, flat bag and T-shirt bag etc. Our machine use double guide for ultrasonic sealing device, more steady and long life span. With CE approval, we have already held a huge clients base selecting this machine around the world.
Features:
1. Imported touch screen display with built-in PLC controlling system.
2. Automatic meter counting and job stop when reaches the preset quantity.
3. Photocell mark tracking and job automatically stops when the material runs out.
4. High voltage static processor and automatic constant temperature controller.
5. Automatic web guiding system and manual unwinding magnetic powder ension controller.
6. This machine adopts ultrasonic welding in all aspects like bag mouth folding and welding bottom sealing and side sealing.
7. Machine operation easy and performance high speed, high precision and produce stable.
8. Two sides of the machine all have running and stop switch, easy operation.
Main Technical Parameter:
|
Type |
WZWF-NB600 |
WZWF-NB700 |
WZWF-NB800 |
|
Bag Making Speed (pcs/min) |
20-100 |
20-100 |
20-100 |
|
Width of Bag (mm) |
300-520 |
300-650 |
300-750 |
|
Length of Bag (mm) |
100-700 |
100-700 |
100-700 |
|
Material Thickness (GSM) |
30-100 |
30-100 |
30-100 |
|
Inserting Size (mm) |
30-90 |
30-90 |
30-90 |
|
Air pressure (Mpa) |
0,36 |
0,36 |
0,36 |
|
Power (V) |
380 |
380 |
380 |
|
The total power (KW) |
12 |
13 |
15 |
|
Weight of the machine (kg) |
3200 |
3500 |
4000 |
|
Weight of the machine and packaging (kg) |
3800 |
4200 |
4500 |
|
Overall Dimension (LxWxH) (mm) |
11000х1600х1800 |
11000х1800х1800 |
11000х2000х1800 |
|
