Product

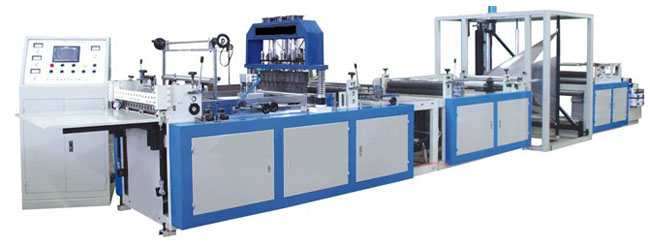

Series non-woven bag making machine WZWF-A



Specifications:

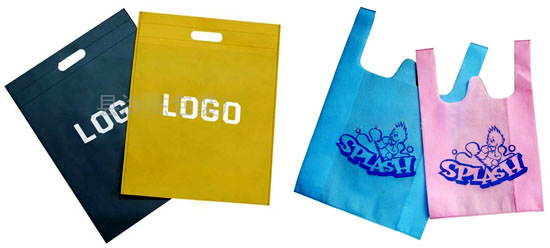

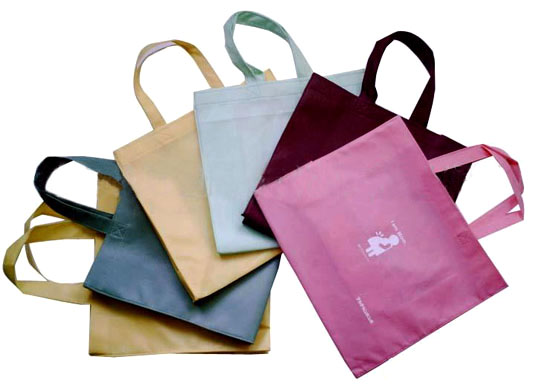

This machine takes non-woven fabric as raw material and can make various kinds of different specifications, different shape of non woven-bag, non-woven flat bag, handle bag, vest bag, shoes bag. It is collection with mechanical and electrical, using LCD touch screen operation. Match with stepping type length setting, photoelectric tracking computer automatic position, computer automatic struggle edge, accurate stable. Automatic counting can set count alarm, automatic punching to industrial device, make it’s the production of finished products wire sealing firm, tangent and beautiful, high available, you can rest assured the applicable quality environmental protection bag making equipment.





Features:

1.   Main motor with frequency conversion, speed can be adjusted.

2.   Micro-computer controlled stepping motor.

3.   Pneumatic shaft axis.

4.   EPC (edge position control) controls material running.

5.   Side-folding, heating with electrical temperature-controlled.

6.   Material half-fold, with EPC control.

7.   Tachometer shows as the material runs.

8.   Adjusted lever with air cylinder tension control.

9.   Two auto punches for D cut and box bag triangle-side cut.

10.  Separate bag side pressing machine for box bag forming.





Main Technical Parameter:

Type

WZWF-A600

WZWF-A700

WZWF-NB 800

Speed (pcs/min)

20-110

20-110

20-110

Bag width (mm)

300-550

300-650

300-750

Bag length (mm)

100-800

100-800

100-800

Material Thickness (GSM)

35-100

35-100

35-100

Inserting Size (mm)

30-90

30-90

30-90

Air pressure (Mpa)

0,36

0,36

0,36

Power (V)

380/220

380/220

380/220

The total power (KW)

9

10

11

The weight of the machine (kg)

3000

3200

3500

The weight of the machine and packaging (kg)

3200

3400

3700

Overall Dimension (LxWxH) (mm)

10000х1600х1900

11000х1800х1900

11000х2000х1900
