Specifications:

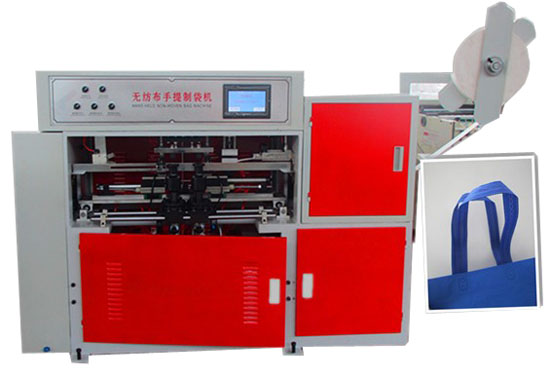

The machine combine person and machine screen intercalate kinds of parameter easier, the new pattern loop handle bag making machine improved by our company collect more feedback of customers. It suits for various composite bags with bottom sealing and cutting. This machine adopts special frame, stepping motor feeding materials. It is precision transfer. There are control devices like auto-counting alarming, auto-punching etc, which make the finished products well-sealed and nice-cutting with high speed and efficiency. It can achieve 100% of finished products, obtains the domestic and foreign customer consistent high praise.

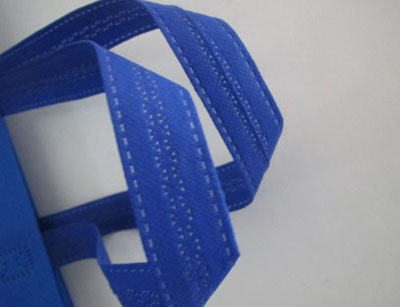

Soft-hand ring bag machine is behind the release of a vice-Rack, vice expected to equal the width of the hand-held length of the article, this pair is expected to cut into the long and narrow strip, and deliver it into the top part of the fold, soft bag of handheld vice. Material transportation system using stepper motor transport, it has a precision of deputy expected to send, seal cutting, and at the same time the accuracy of the seal in the center of the bag.
Main Technical Parameter:
|
Type |
SWDH |
|
Cutting speed (pcs/min) |
10-12 |
|
Handle materials width (mm) |
25-35 |
|
Handle materials length (mm) |
370-600 |
|
Material Thickness (GSM) |
40-100 |
|
Power （V） |
220 |
|
The total power (KW) |
3.5 |
|
The weight of the machine (kg) |
350 |
|
The weight of the machine and packaging (kg) |
400 |
|
Overall Dimension (LxWxH) (mm) |
800х2300х1360 |
|
