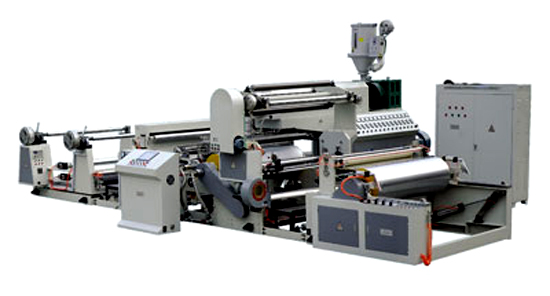

Non Woven Fabric Laminating/Coating Machine DHB-1100

Specifications:

The machine and paper plastic composition unit (non adhesive composition unit) which is integrated winding, drying, surfacing progress, composition edge-cutting abortion edge and rewinding are adopted with photoelectric tracking electric spark treatment linear speed and length of material full automatic eternal tension, suction automatic, etc.

It is products use paper, plastic film, woven fabrics, or aluminum foil, as substrate, through coating film compounded to be two or three layer (sandwich composite) or multi layer become new products. This new products used to make packing products, for example, paper cup board, yogurt cup board, ice cream cup board, noodle bowl. Forage packaging bags, adhesive sticker base paper, glossing paper, non woven fabric bags.

Main Technical Parameter:

Type

DHB-1100

Max compounding speed (m/min)

20-110

Width  of  finished  product (mm)

250-1100

Thickness  of  shower  film (mm)

0.015-0.05

Composite layer

2-3

Output (kg/h)

14-160

L/D ratio for screw

29:1

Power (KW)

75-80

Overall Dimension (LxWxH) (mm)

9000х7000х2500
