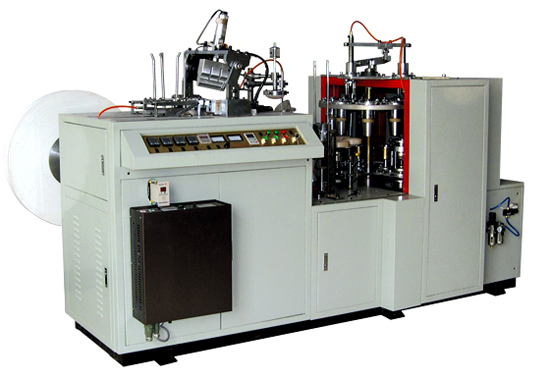

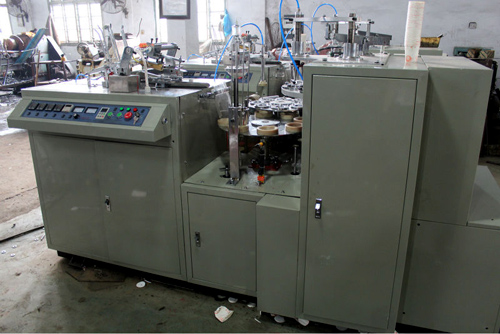

Double Sides PE Coated Paper Cup Forming Machine HTY-12B

Specifications:

This machine runs a whole procedure of paper-feeding, cup-fan-wall sealing, oiling, bottom punching, and heating rolling, rimming, rounding and tripping. It is an idea equipment of producing drinking cup, ice-cream cup and other food cone-shaping containers. This type paper cup machine is mainly used to make double side PE coated paper cups from 3 oz to 16 oz.

In this type paper cup machine, we add a ultrasonic system to sealing the paper cup body, the ultrasonic system resolve the problem that double sides PE coated paper cannot be sealing by heater the reason is that when a heater is adopted on the outside surface the PE film will be burnt and become yellow or blackish and make the cups shape in ugly





Double sides PE coated paper cups are widely used for all kinds of drinks: hot drinks (hot coffee cups, hot water cups), cold drinks paper cups (ice-cream cups), all kinds of beverage, and some other special. One side PE coated paper cups are not suitable for some certain beverage: coca-cola, coke, cold beer. The reason is when a certain beverage or cold beverage filling in one side PE coated paper cups, the paper become softened and the water will leak out slowly.





Features:

1.        Automatic control adopts optically controlled non-contact switch;

2.        Micro-controlled transducer;

3.        Step-less speed adjustment;

4.        Paper Cup-fan-wall body sealed by Ultrasonic System;

5.        Paper Cup bottom sealed by heater;

6.        Full automatic;

7.        Easy changing molds produce different sizes paper cups;

8.        Easy operating by operator (one operator is enough);

9.        Easy maintenance with minimum cost;

10.     Cheap operating cost and low investment.





Main Technical Parameter:

Type

HTY-12B

Cup size

3-16 OZ (Different forms of castings)

Cup diameter (mm)

50-80

Cup depth (mm)

45-125

Suitable paper weigh (g/m2)

130-350

Material

One side/two sides PE film coated paper

Productivity (pcs/min)

40-60

Limit of temperature control (°С)

0-400

Electric heating power (KW)

2.55

The main motor power (KW)

1.5

Power of motor (KW)

0.55

Power source

380/50v/Hz 220v 50v/Hz

Weight (kg)

1500

Overall Dimension (LxWxH) (mm)

2600х1050х1550
