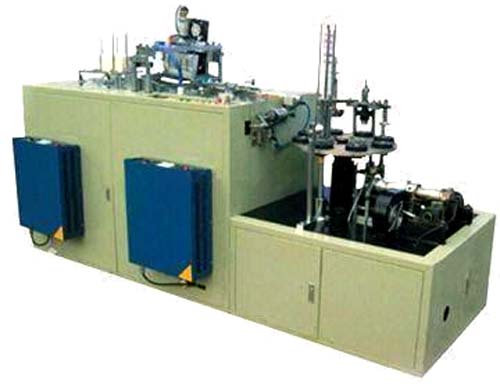

Automatic Paper Ice tube forming machine ZBB220

Specifications:

This automatic paper ice tube forming machine was developed on the basis of imported technologies and combination of advanced domestic and foreign technologies. It can automatic feed paper weld through ultrasonic wave (binding the cup wall), oil heating, press the bottom through ultrasonic, discharge cups continually, process test through photoelectric cell, alarm upon encountering trouble and count it is a good equipment to produce ice cream cups (tube)

Features:

1.      Automatic control adopts optically controlled non-contact switch;

2.      Micro-controlled transducer;

3.      Step-less speed adjustment;

4.      Paper Cup-fan-wall body sealed by heater;

5.      Full automatic;

6.      Easy changing molds produce different sizes paper cups;

7.      Easy operating by operator (one operator is enough);

8.      Easy maintenance with minimum cost;

9.      Cheap operating cost and low investment.

Main Technical Data:

1. Appearance size (L x W x H):1850x1750x1800mm

2. Power source: 220V 50 Hz

3. Total power: 5 KW

4. Paper Cup Sizes: Can do many kinds of size.

5. Row material: Single side and double side PE (polyethylene) film coated paper

6. Speed of making paper cups: 200 PCS per minute

7. Low cost (the choice of two types)

8. DYB5 (Standard type): Min. Height: 140мм Max. Height: 220мм Angle: 21.5°-22.5°

9. DYK5 (Adjustable type): Min. Height: 100мм Max. Height: 255m Angle: 15°-28°
