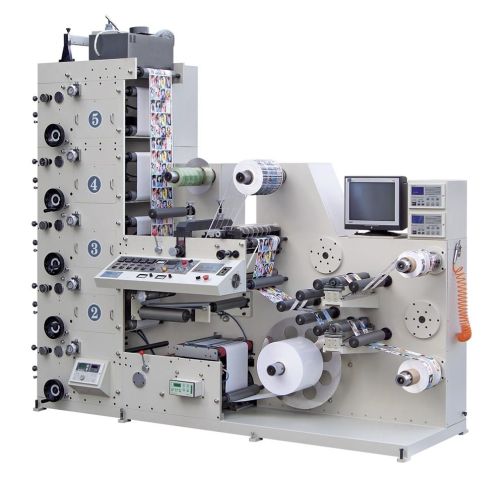

RY-320/480-5 Automatic Rolled Self-adhesive Label Flexographic Printing Machine



Characteristic:

1、The main motor adopts imported converter to govern to govern in a staples way.

2、Feeding and discharging are controlled through magnetic powder brake and clutch (Japanese auto tension controller).

3、Unwind system is controlled by auto-rectify sensor.

4、Adopt ceramic mesh roller spread ink, which is characterized by durability, wear resistance, and corrosion resistance. The doctors can be used, which is more efficient for reducing the times for changing in order to increase the production efficiency.

5、The printing unit can register in 360 degrees. Each printing unit can independently gear and loosen to have the units continue printing.

6、The printing units are equipped with a group of infrared dryers respectively.

7、Each IR dryer device of printing unit can interchange of UV dryer device.

8、The roiling device is adopted clipping device with air-expansion core shaft.

9、The inking roller can automatically fall off at stoppage and transfer at low speed in order to keep the ink from being dry and solid.

10、The roll feeding, printing, polishing, auto infrared drying, laminating and rolling can be processed in one processing. It is characterized by wide application, on-population of printing ink and fast drying, quick printing. So it is an ideal printing machine for the commercial bill to print high-Graded free adhesive trademark.







Main technical parameters:

Model type

RY-320-5

RY-480-5

Printing speed (m/min)

60

60

Printing color (color)

5

5

Max web width (mm)

320

480

Max printing width (mm)

310

450

Max unwind diameter

600

800

Max rewind diameter (mm )

550

750

Printing girth (mm)

175-320

175-580

overprint Precision(mm)

±0.1

±0.1mm

Can add UV drying units

5Group

5Group

Power

380v/ACThree Phase 50H

380v/ACThree Phase 50H

Total power

6.8kw(Non-UV)

8 kw(Non-UV)

Overall dimensions ( L x W x H ) (mm)

2100×1100×2600

2300×1260×2700

Machine weight (kg)

about2400

about2600
