Specifications:

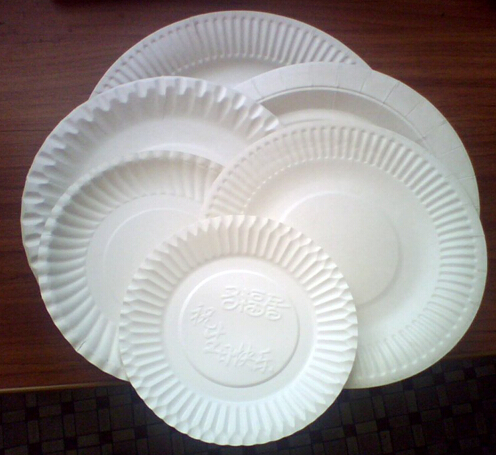

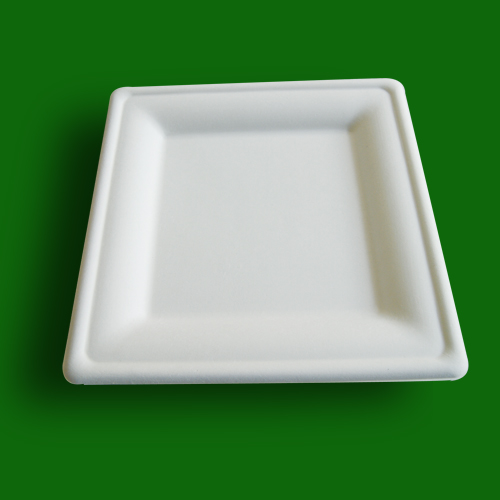

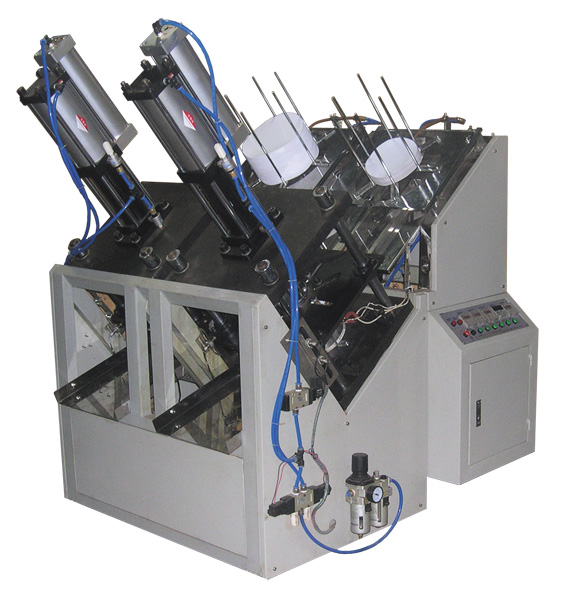

The machine is developed and designed as the requirement of market. It is widely used in production paper plates or aluminum foil plate, round or square plate with different size and shape. It is pneumatic type automatic paper dish forming machine with owned unique intellect property right, which has function as automatic paper feeding, forming, dish ejecting, temperature constant controlling, automatic counting, fast working speed, safe operation and easy maintenance, etc.
The machine have two working station, two molds installed in the machine, you can produce two sizes paper plates in the same time or let the two molds the same to get double speed. Air compressor is demanded in this machine to offer the air pressure.
Main Technical Parameter:
|
Type |
ZYJ-B |
|
Paper plate diameter (inch) |
4-9 |
|
Speed (pcs/min) |
20-30 |
|
Power |
220V 50HZ |
|
The total power (KW) |
2 |
|
Weight (kg) |
250 |
|
Overall Dimension (LxWxH) (mm) |
1300х1000х1750 |
|
Air pressure (Mpa) |
0.6 |
|
Air flow volume (m3/min) |
1 |
|
