Features:
·Specially made PET screw highly increases the plasticizing speed
and shot weight, lowers the plasticizing speed and show weight, lowers the
plasticizing temperature and AA value, also lowers the shearing of perform,
while achieves better transparency.

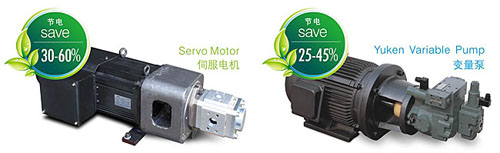

·The servo motor control system can save energy by 30% ~ 50%, while the
variable pump control system can save energy by 25% ~ 45%.
·Different models are available for the choice of customers.
·Increasing eject force ejector stroke, accepts PET perform molding.
·Whole closed safe door meets the requirement of sanitary and thermo-control.
·Hot runner system interface is included.
·Optional with pressure holding and charge at the same time, which can increase
the output by 15% ~ 25%.
·Whole production project can be provided, including moulds, injection molding
machine, PET stretch blow molding machine and auxiliary equipments.

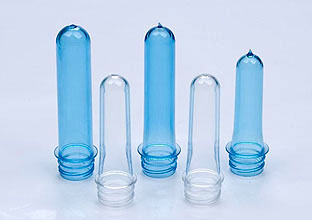

·PET perform
·Mould cavity：48
·Product weight：15g
·Cycle time：10S
·Resin：PET
Optional：
1. Dehumidifier
(material)
2. Hoper
Dryer
3. Hopper
Dryer Stand
4. Double-layer
Silicone Pipe
5. Auto-cleaning
Loader
6. Vacuum
Autoloader with Indicator
7. Vacuum
Autoloader with Electric Sensor
8. Suction
Box with Stop-valve
9. Heat-Resistant
Steel Pipe
10. Preform
Moulds
11. Water
Chiller for Mould
12. Dehumidifier
for Mould
13. Cooling
Tower
14. Pump
for Cooling Tower
15. Servo
robot
16. Conveyer
17. Preform
Tank
Parameters
|
Type
|
HD1300-424
|
HD1300-616
|
HD1600-616
|
|
Injection Unit
|
|
|
|
|
Screw
Diameter, mm
|
46
|
52
|
52
|
|
Shot Volume,
cm3
|
333
|
435
|
435
|
|
Shot Weight
(ps), g
|
313
|
409
|
409
|
|
Shot Weight
(pet), g
|
387
|
507
|
507
|
|
Shot Weight
(pp), g
|
268
|
351
|
351
|
|
Screw Stroke,
mm
|
200
|
205
|
205
|
|
Max screw
rotary speed, rpm
|
180 176
|
180 176
|
180 176
|
|
Clamping Unit
|
|
|
|
|
Clamping
Force, KN
|
1300
|
1300
|
1600
|
|
Opening
Stroke, mm
|
350
|
400
|
440
|
|
Max. daylight
mm
|
750
|
820
|
940
|
|
Space between
bars (H*V), mm*mm
|
410*410
|
410*410
|
460*460
|
|
Movable Platen
Size (H*V), mm*mm
|
610*610
|
620*620
|
705*705
|
|
Max. mold
Height, mm
|
400
|
420
|
500
|
|
Min. mold
Height, mm
|
145
|
150
|
160
|
|
Ejector
stroke, mm
|
100
|
125
|
145
|
|
Ejector Force,
KN
|
60
|
60
|
75
|
|
Ejector Force,
KN
|
36
|
36
|
55
|
|
Number of
Ejector pins
|
4+1
|
4+1
|
4+1
|
|
Power Unit
|
|
|
|
|
Hydraulic
system pressure, Mpa
|
17.5
|
17.5
|
17.5
|
|
Pump motor
power, KW
|
11 16.5
|
15 18.5
|
15 18.5
|
|
Heater Power,
KW
|
10
|
12.5
|
12.5
|
|
Total Current,
A
|
70 80.5
|
87.1 89.6
|
87.1 89.6
|
|
General
|
|
|
|
|
Oil Tank Capacity,
L
|
200
|
200
|
280
|
|
Machine
Weight, Ton
|
3.6
|
3.8
|
4.5
|
|
Machine
Dimension, L*W*H
|
4.5*1.2*1.8
|
4.5*1.2*1.8
|
5.3*1.3*1.8
|
|
Type
|
HD2000-950
|
HD2000-1088
|
HD2880-1088
|
|
Injection Unit
|
|
|
|
|
Screw
Diameter, mm
|
60
|
67
|
67
|
|
Shot
Volume, cm3
|
693
|
987
|
987
|
|
Shot
Weight (ps), g
|
651
|
927
|
927
|
|
Shot
Weight (pet), g
|
806
|
1150
|
1150
|
|
Shot
Weight (pp), g
|
558
|
795
|
795
|
|
Screw
Stroke, mm
|
245
|
280
|
280
|
|
Max
screw rotary speed, rpm
|
170
166
|
160
168
|
160
168
|
|
Clamping Unit
|
|
|
|
|
Clamping
Force, KN
|
2000
|
2000
|
2880
|
|
Opening
Stroke, mm
|
490
|
490
|
550
|
|
Max.
daylight mm
|
1040
|
1040
|
1160
|
|
Space
between bars (H*V), mm*mm
|
510*510
|
510*510
|
610*610
|
|
Movable
Platen Size (H*V), mm*mm
|
775*755
|
775*755
|
850*850
|
|
Max.
mold Height, mm
|
550
|
550
|
610
|
|
Min.
mold Height, mm
|
230
|
230
|
280
|
|
Ejector
stroke, mm
|
160
|
160
|
175
|
|
Ejector
Force, KN
|
99
|
99
|
111
|
|
Ejector
Force, KN
|
77
|
77
|
77
|
|
Number
of Ejector pins
|
6+1
|
6+1
|
4+1
|
|
Power Unit
|
|
|
|
|
Hydraulic
system pressure, Mpa
|
17.5
|
17.5
|
17.5
|
|
Pump
motor power, KW
|
18.5
20.4
|
22
41
|
22
41
|
|
Heater
Power, KW
|
15
|
16.5
|
20
|
|
Total
Current, A
|
102.6
107.6
|
125.6
150
|
141.5
165.9
|
|
General
|
|
|
|
|
Oil
Tank Capacity, L
|
420
|
420
|
560
|
|
Machine
Weight, Ton
|
6.4
|
6.4
|
8.2
|
|
Machine
Dimension, L*W*H
|
6.0*1.4*2.1
|
6.0*1.4*2.1
|
6.5*1.53*2.2
|
