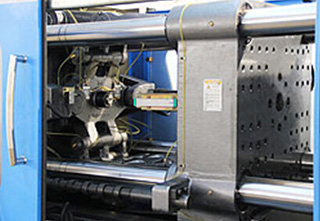

High speed injection molding machine for thin-wall products

Low temperature, low pressure, fast response speed
●Innovative design of plasticizing system achieves low-temperature injection; it makes the machine energy-saving, environmental, and manufactures products with high tenacity and toughness.
●Advanced hydraulic system achieves low pressure injection; it makes the machine gain better mechanical protection, have longer mould service life, and manufactures products with low stress and deformation.
●Optimized control system achieves fast response speed; it makes the machine obtain higher shot rate in a short time and reaches the best within 0.3 seconds.

1.    High-speed





High-speed molding design shortens the cycle time of production.

Good durability of mature double injection cylinder is better than the single cylinder injection.





Low resistance linear guide rail, positioning precision, fast response, high repeatability.

2.    Energy Saving

Energy saving design lowers the cost of production to the bottom.





Special oil-circuit design greatly improves the injected acceleration & movement.





Standard ceramic heater is used to achieve the energy saving and environmental protection.

3.    Stable

High stability design can stabilize the production, improve the rate of finished products,and extend the service life.







High rigid mechanical design can meet the demand of fast mechanical movement.

4.    Durable

High-rigidity machine design achieves longer service life.







The standard configuration of multi-sets of air blowing is designed special for fast cycle production.









Innovative design can optimize the plasticizing effect and reduce the heating temperature in production, which results in energy saving and environmental protection, and can produce higher flexible and non-friable products

Parameters

Type

HD1300-235

HD2500-502

CLAMPING UNIT

Clamping force, KN

1300

2500

Opening stroke, mm

400

520

Max. daylight, mm

820

1100

Platen size, mm*mm

630*620

800*760

Space between bars, mm*mm

410*410

560*490

Max. mold height, mm

420

580

Min. mold height, mm

150

230

Ejector stroke, mm

125

145

Ejector force, KN

42

77

INJECTION UNIT

Screw diameter, mm

36

46

Screw L/D ratio

22

22

Injection pressure. Mpa

164

168

Shot volume, cm3

143

299

Shot weight (ps), g/OZ

127/4.5

266/9.4

Injection rate, g/s

171

309

Screw stroke, mm

140

180

Screw speed, rpm

340

350

POWER UNIT

Hydraulic system pressure, Mpa

17.5

17.5

Pump motor power, KW

18.5

30

Heater power, KW

8

17.7

GENERAL

Oil tank capacity, L

260

420

Machine weight, Ton

3.9

7.5

Machine dimensions (L*W*H) m*m*m

4.7*1.23*1.7

5.6*1.4*2.1
