Standard functions:

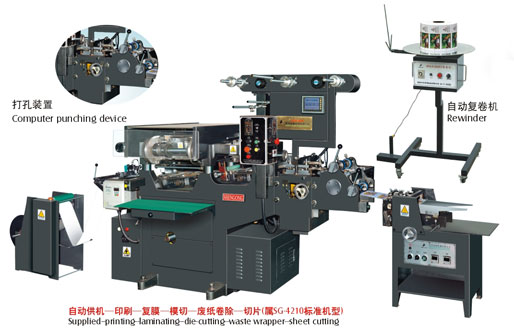

-- One-to-four-color printing machine to send FILM -- on the paper cutter cutting Apart from the waste (as standard models).
Optional function:
Tt is gold-plated computer printout of the drilling equipment UV dryer -- namely printing digital servo control system – Winder machine.
Special functions:
The machine can be expanded by adding an extra punch, with devices (exclusive drilling lottery) adapt to meet the various tourist dies
1.Automatic feeding paper coordinates the printing speed. If there is no paper, the machine will automatically stop.
2. It can set accurate quantity of paper cutting arbitrarily, trim the angle front and back, accurately control the quantity of paper. It is easy to operate.
3. Polishing press wheel can be pulled out in a set. It is easy to operate and clean and can save time. It is unique design. It is characterized by quickness, ease of operation and high stability. The feed, printing, laminating, die cutting, computer hole and finished products can be done in one processing.
4. The die cut seat can be regulated left and right, up and down membrane angle. It is fast to have a pilot run with high stability to ensure its safety.
5. The machine is equipped with computer auto controller, for example, the machine can automatically stop if the materials are broken in printing. So it is safe and reliable in printing.
6. It is equipped with centralized fueling system to ensure that there is no abnormal erosion in printing.
7. The switches are easy to distinguish and operate. It is the ideal equipment for trademark printing.
Main technical parameters:
|
Model type |
SG |
|
Chase dimensions |
200×330mm |
|
Max. Print area 2 color |
200×157mm |
|
Max. Print area 3 color |
200×101mm |
|
Max. Print area 4 color |
200×65mm |
|
Max. Paper width |
210mm |
|
Max. Paper forward |
200mm |
|
Max. Hot-stamping area |
200×150mm |
|
Max. Die-cutting dimension |
200×200mm |
|
Printing speed |
50~200 r/pm |
|
Machine size(L×W×H) |
2500×1200×1750mm |
|
Machine weight(Net weight) |
2800kgs |
|
Power motor(main motor)(HP) |
2.2kw |
|
Power motor(air suction motor) |
0.375kw |
|
