Features：

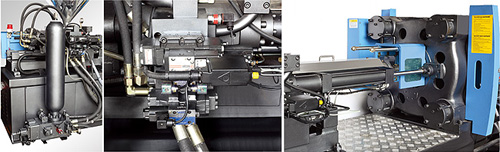

1.Nitrogen
injection with accumulator achieves injection speed over 350mm/s and the
high-performance imported servo valve guarantee faster injection response and
higher precision；
2.High-strength mechanism design guarantees high speed operation；
3. Optional multi-loop design is featured with synchronous operation and shorted
cycle time.
Production
Instance：

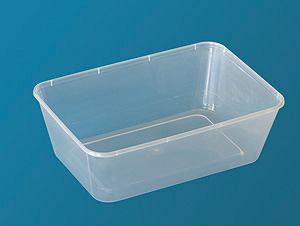

750cc square fast food box
Cavity：2
Thickness：0.43mm
Weight：19g
Cycle time：5.3S
Material：PP
Parameter：
|
Type
|
HD1280-426
|
HD2000-802
|
HD3300-1705
|
|
CLAMPING UNIT
|
|
|
|
|
Clamping
force, KN
|
1280
|
2000
|
3300
|
|
Opening
stroke, mm
|
350
|
490
|
600
|
|
Max. daylight,
mm
|
750
|
1040
|
1300
|
|
Platen size,
mm*mm
|
610*610
|
775*755
|
958*985
|
|
Space between
bars, mm*mm
|
410*410
|
510*510
|
670*670
|
|
Max. mold
height, mm
|
400
|
550
|
700
|
|
Min. mold
height, mm
|
145
|
230
|
300
|
|
Ejector
stroke, mm
|
100
|
140
|
180
|
|
Ejector force,
KN
|
41.5
|
65
|
77
|
|
INJECTION UNIT
|
|
|
|
|
Screw
diameter, mm
|
36 42 46
|
46 52 60
|
60 68 75
|
|
Screw L/D
Ratio
|
23 20 18
|
21.7 19.2 17.5
|
21 21 19
|
|
Injection
Pressure, Mpa
|
238 175 146
|
201 157 118
|
198 154 127
|
|
Shot volume,
cm3
|
183 249 299
|
407 520 693
|
877 1126 1370
|
|
Shot weight
(ps), g/OZ
|
172/6.1
234/8.3 281/9.9
|
383/13.5
489/17.2 651/23.0
|
824/29.1
1058/37.3 1287/45.4
|
|
Injection
rate, g/sec
|
377 514 616
|
483 617 822
|
678 871 1060
|
|
Screw stroke.
mm
|
180
|
245
|
310
|
|
Screw speed,
rpm
|
277
|
274
|
169
|
|
POWER UNIT
|
|
|
|
|
Hydraulic
system Pressure, Mpa
|
16
|
16
|
16
|
|
Pump motor
power, KW
|
22
|
30
|
45
|
|
Heater power,
KW
|
7.8
|
11.5
|
18
|
|
GENERAL
|
|
|
|
|
Oil tank
capacity, L
|
340
|
420
|
630
|
|
Machine
weight, Ton
|
3.2
|
5.8
|
10.8
|
|
Machine
dimensions (L*W*H),
|
4*1.2*1.8
|
5.8*1.5*2.1
|
6.8*1.7*2.3
|
|
