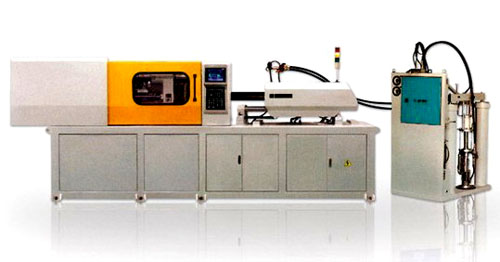

Silicone Injection Molding Machine





Features:

1. Optimized clamping system with high rigidity and high precision.
2. Modular oil circuit design with high response.
3. High response and double cylinder injection system with automatic V-P conversion function.
4. High speed and precise microcomputer controller with large screen display.
5. Multifunctional ejection for selection and inclusion of core pulling interface suitable for different kinds of mold.
6. Professional design of feeding system with more accurate measurement.
7. Compatible with other famous brand Feeding Mixer.





Parameter:

Type

HD900-300

HD1200-380

HD1600-604

HD2000-934

CLAMPING UNIT

Clamping force, KN

900

1200

1600

2000

Opening stroke, mm

320

350

440

490

Max. daylight, mm

680

750

940

1040

Platen size, mm*mm

540*540

610*610

705*705

775*755

Space between bars, mm*mm

360*360

410*410

460*460

510*510

Max. mold height, mm

360

400

500

550

Min. mold height, mm

130

145

160

230

Ejector stroke, mm

100

100

140

140

Ejector force, KN

34

42

49

65

INJECTION UNIT

Screw diameter, mm

36

40

45

52

Injection Pressure, Mpa

185

165

185

180

Shot volume, cm3

163

226

326

520

Shot weight(ps), g/OZ

153/5.4

202/7.1

291/10.3

489/17.2

Screw stroke, mm

160

180

205

245

POWER UNIT

Hydraulic system pressure, Mpa

17.5

17.5

17.5

17.5

Pump motor power, KW

11

11

15

18.5

GENERAL

Dry-cycle time, sec

1.5

1.5

1.8

1.8

Oil tank capacity, L

180

200

260

340

Machine weight, Ton

2.8

3.2

4.5

5.8

Machine dimensions (L*W*H)

4*1.2*1.7

4.3*1.2*1.8

4.8*1.3*1.8

5.56*1.4*2
