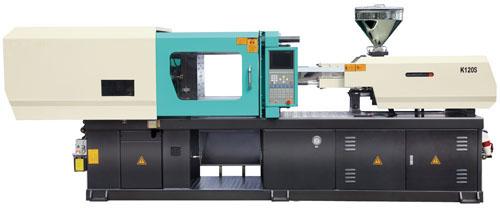

Features：
1. The

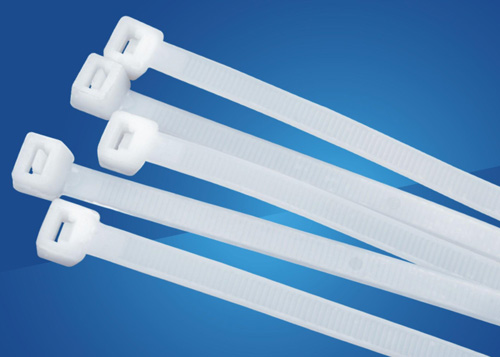

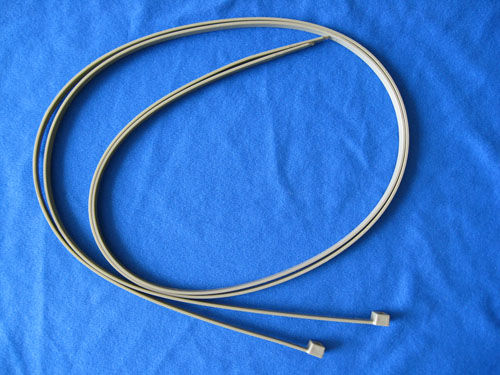

optimized toggle clamping design for the Nylon Ribbon mould will reduce the
opening stroke and shorten the time of opening & clamping
2.The special design of long platen is used for the Nylon Ribbon mould
3.Strengthen parts such as mould plate, frame, and toggle; make the whole
machine more rigid and more durable.
4. Special design screw & barrel for PA, makes good effect of plasticizing
and melting speed, and this design can exhaust the water and air, ensure the
quality of the machine.
5. Upgraded hydraulic system, ensures the injection
speed faster, and shortens the cycle time
Parameter:
|
Type
|
HD2000-730
|
HD2880-935
|
HD3300-1342
|
|
CLAMPING UNIT
|
|
|
|
|
Clamping
force, KN
|
2000
|
2880
|
3300
|
|
Opening
Stroke, mm
|
320
|
370
|
510
|
|
Max. daylight,
mm
|
720
|
820
|
1060
|
|
Platen Size,
mm*mm
|
780*900
|
780*960
|
985*1060
|
|
Space between
bars, mm*mm
|
510*510
|
510*580
|
670*670
|
|
Max. mold
height, mm
|
400
|
450
|
550
|
|
Min. mold
height, mm
|
170
|
200
|
240
|
|
Ejector
stroke, mm
|
100
|
100
|
120
|
|
Ejector force,
KN
|
65
|
77
|
77
|
|
INJECTION UNIT
|
|
|
|
|
Screw
diameter, mm
|
52
|
60
|
68
|
|
Screw L/D
ratio,
|
20
|
20
|
20
|
|
Injection
Pressure, Mpa
|
139
|
136
|
132
|
|
Shot volume,
cm3
|
435
|
693
|
1017
|
|
Shot weight
(ps), g
|
409
|
651
|
956
|
|
Screw stroke,
mm
|
205
|
245
|
280
|
|
Injection
rate, g/s
|
290
|
393
|
443
|
|
Screw speed,
rpm
|
368
|
325
|
237
|
|
POWER UNIT
|
|
|
|
|
Hydraulic
system pressure, Mpa
|
17.5
|
17.5
|
17.5
|
|
Pump motor
power, kw
|
22
|
30
|
37
|
|
Heater power,
kw
|
9.8
|
11.5
|
18
|
|
GENERAL
|
|
|
|
|
Oil tank
capacity, L
|
360
|
420
|
460
|
|
Machine
weight, kg
|
6
|
8
|
10.8
|
|
Dimension
(LxWxH)
|
5.2*1.4*1.8
|
5.4*1.55*1.9
|
6.8*1.6*2
|
|
