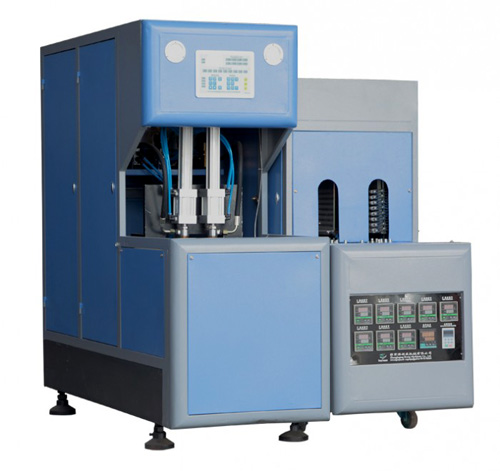

Features：
．Five pivots toggle mould clamping is featured with
big clamping force and stable performance. No expansion of mold, convenience
for mold change.
．High-speed
PLC is adopted from OMRON, with multi-language HMI, easy for operation, stable
in technical parameter
．The
pneumatic circuit system is adopted from FESTO (Germany) & SMC (Japan),
precise, stable and longer in service life.
．Perfect
protection function guarantees product safety.
Technical
Parameter：
|
Type
|
HDSBM80-2BX
|
HDSBM100-2BX
|
HDSBM300-1BX
|
|
Clamping
Force, KN
|
80
|
100
|
300
|
|
Stretch
Stroke, mm
|
360
|
380
|
600
|
|

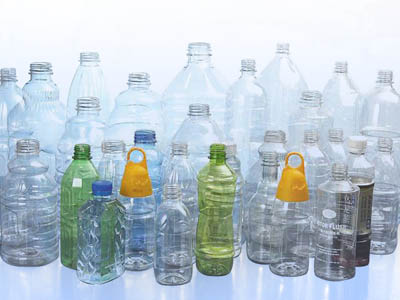

Capacity of
bottle, L
|
1.5*2 OR 5*1
|
2.5*2 OR 6*1
|
20
|
|
Reference
Output, BPH
|
800*2 OR 600
|
700*2 OR 500
|
80
|
|
Operation
Pressure/Consumption, Mpa/m3/min
|
0.8/1.5
|
0.8/2.0
|
0.8/2.0
|
|
High
Pressure/Consumption, Mpa/m3/min
|
3.0/1.5
|
3.0/2.0
|
3.0/2.0
|
|
Power Supply
|
220V/1AC
|
220V/1AC
|
220V/1AC
|
|
Power
Consumption, W
|
100
|
100
|
100
|
|
Machine
Dimension, mm
|
1400*620*1600
|
1750*620*1650
|
2200*800*1900
|
|
Machine
Weight, kg
|
750
|
750
|
1350
|

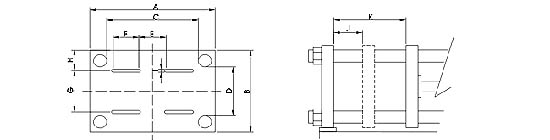

Mould Platen
Size：
|
