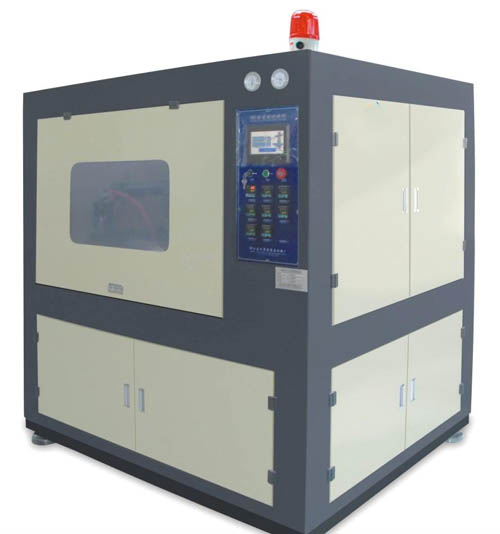

Manual perform-in automatic blow molding machine (PP/PET)

Features:


.Five pivots toggle mould clamping is featured with big clamping force and stable performance.


.Combined heating and blowing in one machine, it is stable and high-efficient without skillful worker.


.High-speed PLC is adopted from OMRON, with multi-language HMI, easy for operation, stable in technical parameter.


.The pneumatic circuit system is adopted from AIRTEC (Germany) & SMC (Japan), precise, stable and longer in service life.


.IR lamp which is most efficient for PET heating, is fully considered for lower power consumption and higher production efficiency.


.Accidents during production are almost prevented as the security systems are more reasonable and perfect.


.High-performance chain driven with specialized track provides stable operation, and no shaking; Replaceable heating base head makes operation and maintenance in low cost.





Technical Parameter:

Specification

HDSBL70-1

HDSBL70-2

HDSBL70-1W

Clamping Force, KN

70

70

70

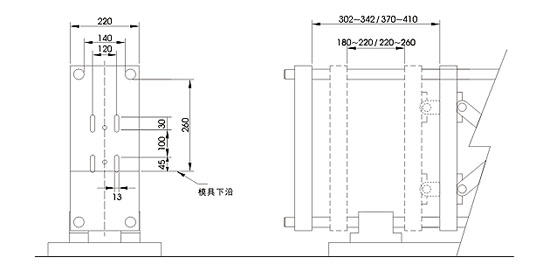

Mold Height, mm

180-220

180-220

220-260

Mold Open Stroke, mm

122

122

150

Bottle Capacity, ml

1000

1500

2000

Reference Output, BPH

900

1800

600

Stretch Bar Stroke, mm

360

310

360

Max. Bottle Neck, mm

60

30

90

Max. Diameter of Bottle, mm

90

50

110

Max. Height of Bottle, mm

245

130

245

Mold Cavities/ Central Distance, c/mm

1/-

2/76.2/63.5

1/-

Power Rating, KW

32

32

40

Power Consumption, KW

<13

<13

<16

Operation Pressure/Consumption, MPA/m3/min

0.8/1.5

0.8/2.0

0.8/1.5

High Pressure/Consumption Mpa/m3/min

3.0/1.5

3.0/2.0

3.0/1.5

Machine Dimension (L*W*H), mm

2600*1350*1900

2600*1350*1900

2600*1350*1900

Machine weight, kg

900

900



900
