Characteristics：
Vertical clamping;
Vertical injection;
Safe and prevent mould from weigh;
It fits for inserts plastic molding.
Parameter：
|
Model
|
HDTY550-2R(servo)
|
|
INJECTION
UNIT
|
|
|
Screw Diameter, mm
|
φ32
|
|
Injection Pressure, Kg/cm2
|
1662
|
|
Theoretical Shot volume, cm3
|
96
|
|
Max. Shot Weight, g/Oz
|
86/3.0
|
|
Injection Rate, cm3/sec
|
58
|
|
Screw Rotation Speed, rpm
|
10-235
|
|
Temperature Control, ZONE
|
3
|
|
Material Hopper Capacity, L
|
20
|
|
CLAMPING
UNIT
|
|
|
Clamping Force, T
|
55
|
|
Opening Force, T
|
8.3
|
|
Mold Dimensions, mm
|
450*450
|
|
Min Mold Height, mm
|
150
|
|
Opening Stroke, mm
|
200
|
|
Max. Open Daylight, mm
|
350
|
|
Ejector Force, T
|
1.3
|
|
Ejector stoke, mm
|
40
|
|
SLIDING
UNIT
|
|
|
Round Set Diameter, mm
|
Φ1200
|
|
POWER UNIT
|
|
|
Max. Hydraulic Pressure, Kg/cm2
|
140
|
|
Pump Output, L
|
160
|
|
Oil Pump Capacity Of Servo Motor, L
|
47
|
|
Barrel Heating Power, KW
|
4.5
|
|
GENERAL
|
|
|
Machine Weight, T
|
3.1
|
|
Machine Dimensions(L*W*H), m
|
2.2*1.7*2.9
|

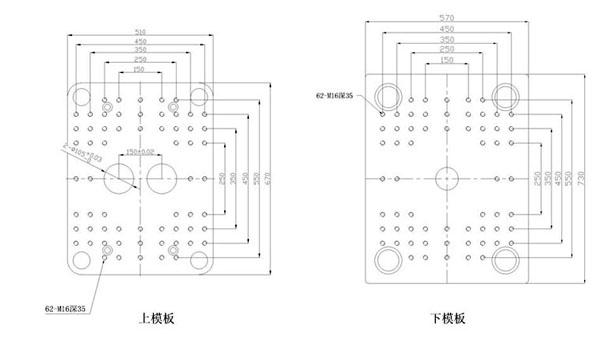

Template size
|
