Characteristics
High forming precision, the fast and stable, Low noise, no

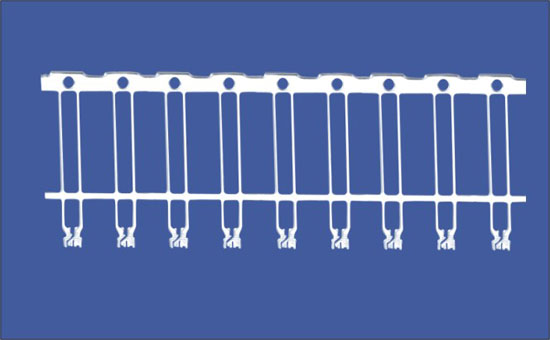

pollution, Can meet the automatic belt continuous molding demand
Parameter:
|

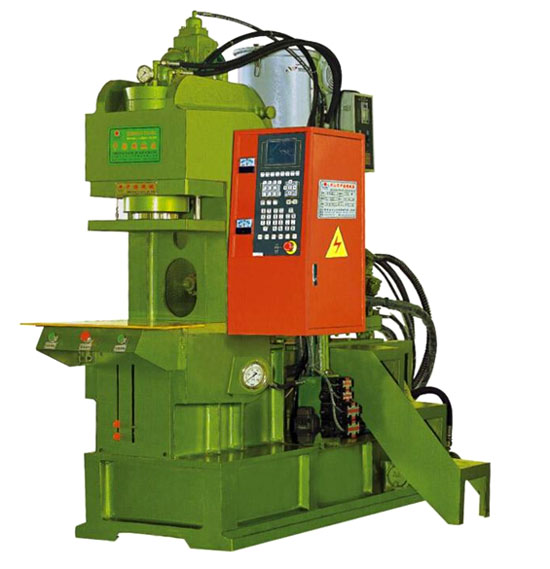

Type
|
HDTY550APC
|
|
INJECTION UNIT
|
|
|
Screw
Diameter, mm
|
φ22
|
|
Injection
Pressure, Kg/cm2
|
2343
|
|
Theoretical
Shot volume, cm3
|
40
|
|
Max. Shot
Weight, g/Oz
|
34/1.2
|
|
Injection
Rate, cm3/sec
|
190
|
|
Temperature
Control, zone
|
3
|
|
Material
Hopper Capacity, L
|
20
|
|
CLAMPING UNIT
|
|
|
Clamping
Force, T
|
55
|
|
Opening Force,
T
|
8.3
|
|
Distance
Between Tie Bare, mm
|
415*250
|
|
Min Mold
Height, mm
|
150
|
|
Opening
Stroke, mm
|
200
|
|
Max. Open
Daylight, mm
|
350
|
|
Ejector Force,
T
|
1.3
|
|
Ejector Stoke,
T
|
40
|
|
POWER UNIT
|
|
|
Max. Hydraulic
Pressure, Kg/cm2
|
140
|
|
Pump Output, L
|
160
|
|
Barrel Heating
Power, Kw
|
4.1
|
|
GENERAL
|
|
|
Machine
Weight, T
|
1.9
|
|
Machine
Dimensions(L*W*H), M
|
1.9*1.4*3.1
|
|
