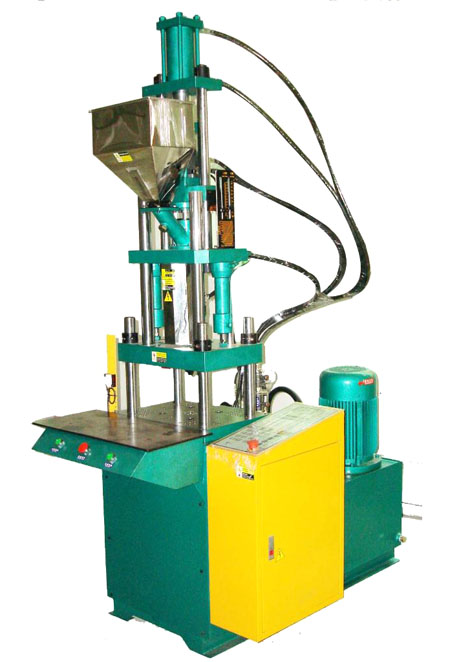

HDTY-120 Vertical injection molding machine



Characteristics

Vertical clamping, vertical injection, safe and prevent mould from weigh, It fits inserts plastic molding.

Human oriented design, different types machines to select, more closely to clients different requirement.

Parameter:

Type

HDTY-120

INJECTION UNIT

Screw Diameter, mm

Ф22, Ф25

Injection Pressure, Kg/cm2

1627, 1260

Theoretical Shot volume, cm3

40, 52

Max. Shot Weight, g/Oz

36/1.3, 46/1.6

Injection Rate, cm3/sec

32.9, 42

Temperature Control, ZONE

2

Material Hopper Capacity, L

15

CLAMPING UNIT

Clamping Force, T

12

Opening Force, T

6.3

Mold dimensions, mm

280*145

Min Mold Height, mm

120

Opening Stroke, mm

160

Max. Open Daylight, mm

280

Ejector Force, T

1.3

Ejector stoke, mm

40

POWER UNIT

Max. Hydraulic Pressure, Kg/cm2

140

Pump Output, L

80

Pump Motor Power, kw

3

Barrel Heating Power, kw

2.1

Total Wattage, kw

5.1

General

Machine Weight, t

0.66

Machine Dimensions(L*W*H), m

1.3*0.8*2.3

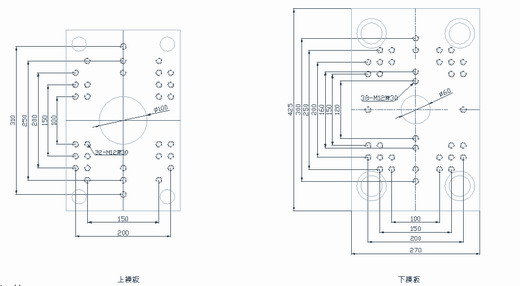

Template:
