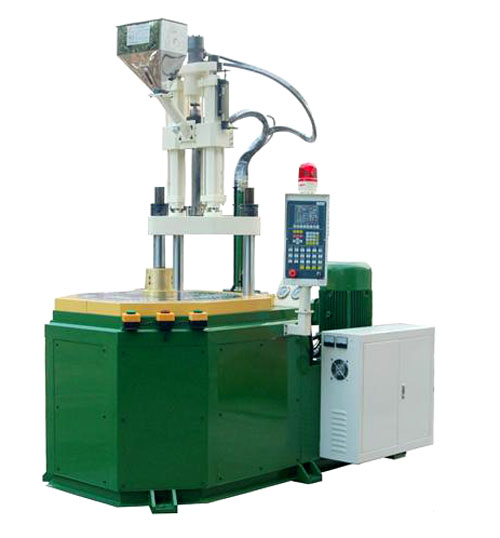

HDTY-850DS Double Slide Vertical injection molding machine



Characteristics

Vertical clamping, vertical injection structure design, it fits for inserts plastic products molding.
Double slide table, when it runs, two bottom moulds with one upper mould slide left and right by turn, one mould operate

PARAMETER:

Type

HDTY-850DS

INJECTION UNIT

Screw Diameter, mm

36, Ф42

Injection Pressure, Kg/cm2

1732, 1266

Theoretical Shot volume, cm3

182, 249

Max. Shot Weight, g/Oz

162/5.7, 222/7.8

Injection Rate, cm3/sec

87, 119

Temperature Control, ZONE

3

Material Hopper Capacity, L

30

CLAMPING UNIT

Clamping Force, T

85

Opening Force, T

13.5

Mold dimensions, mm

500×340

Min Mold Height, mm

200

Opening Stroke, mm

250

Max. Open Daylight, mm

450

Ejector Force, T

2.7

Ejector stoke, mm

75

POWER UNIT

Max. Hydraulic Pressure, Kg/cm2

140

Pump Output, L

260

Pump Motor Power, kw

11

Barrel Heating Power, kw

4.5

Total Wattage, kw

15.5

General

Machine Weight, t

3.7

Machine Dimensions(L*W*H), m

2.3*1.1*3.2

Slide Plater Stoke, mm

500
