Characteristics
It

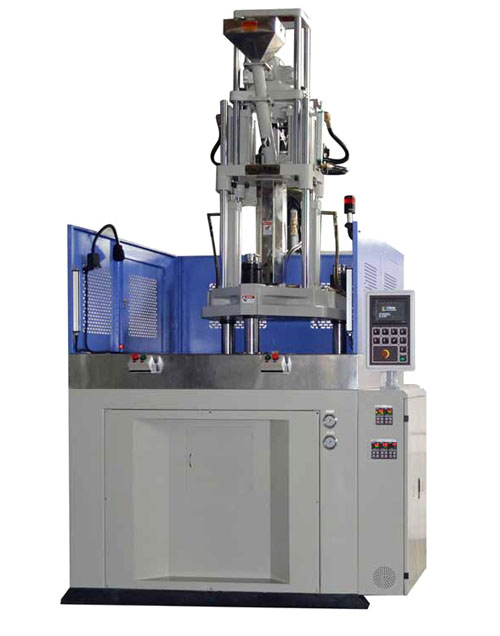

is a two station rotary table, an upper die, a lower die and two are in the
same plane rotate 180 degrees alternating movement forming , the best
performance for type safety, rotary type besides the advantages of skateboard
machine has, for the operation of fixed position, can save the artificial,
improve work efficiency of 50%-100%. The technical performance of equipment;
vertical rotary injection machine structure for vertical mould, vertical
injection molding machine, compact structure, small floor space, using direct
pressure mode locking structure, high precision of mold locking, long service
life.
Parameter
|
Type
|
HDTY1500-2R
|
|
INJECTION UNIT
|
|
|
Screw
Diameter, mm
|
25
|
|
Injection
Pressure, Kg/cm2
|
1814
|
|
Theoretical
Shot volume, cm3
|
51.5
|
|
Max. Shot
Weight, g/Oz
|
46/1.6
|
|
Injection
Rate, cm3/sec
|
160
|
|
Temperature
Control, ZONE
|
4
|
|
Material
Hopper Capacity, L
|
15
|
|
CLAMPING UNIT
|
|
|
Clamping
Force, T
|
150
|
|
Opening Force,
T
|
18
|
|
Min Mold
Height, mm
|
300
|
|
Opening
Stroke, mm
|
300
|
|
Max. Open
Daylight, mm
|
600
|
|
Ejector Force,
T
|
5.4
|
|
Ejector stoke,
mm
|
75
|
|
SLIDING
MODE SYSTEM
|
|
|
Round Set Diameter, mm
|
Φ1572
|
|
POWER UNIT
|
|
|
Max. Hydraulic
Pressure, Kg/cm2
|
140
|
|
Pump Output, L
|
500
|
|
Pump Motor Power,
kw
|
18.5
|
|
Barrel Heating
Power, kw
|
4.3
|
|
Total Wattage,
kw
|
22.8
|
|
General
|
|
|
Machine
Dimensions(L*W*H), m
|
3.1*1.7*3.6
|
|
