Characteristic：

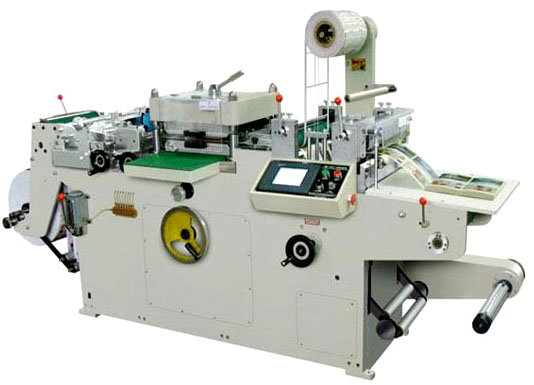

The machine adopts accurate flatten die-cutting system, material towing is controlled by servo motor; three photocells do the web- guiding job. Die-cutting, wastes recycle and sheet cutting can be finished in one process. It is suitable for die-cutting adhesive paper, Dacron label and laser hologram mark. This is the ideal association equipment for flexible printing machine, ribbon screen printing machine, gravure printing machine and hologram mark printing machine. It is the most efficient machine for printing house.
Options choosed bythe user:
1.Punching system (can be middle or side punching)
2.Hot-stamping system
3.Lamination system, can be installed in different position
Main technical parameters:
|
Model |
WQT 320 |
WQT 320G |
WQT 420 |
|
Cutting speed |
20-125times/min |
20-170times/min |
20-170times/min |
|
Max. unwinding diameter |
450mm |
500mm |
500mm |
|
Max. web width |
320mm |
320mm |
420mm |
|
Max. mould cutting width |
300mm |
300mm |
400mm |
|
Max. mould cutting length |
290mm |
300mm |
400mm |
|
Orientation accuracy |
±0.15mm |
±0.1mm |
±0.1mm |
|
Total power |
3kw |
3.5kw |
4.5kw |
|
Power supply |
220v±10% |
220v±10% |
380v |
|
Machine weight |
about1500kg |
about 1700kg |
about2300kg |
|
Overall dimensions(L×W×H)(m) |
2.6×0.95×1.4 |
2.6×0.99×1.4 |
2.7×1.0×5.15 |
|
