Characteristics
Vertical
clamping, vertical injection structure design, it fits for inserts plastic
products molding.
Double slide table, when it runs, two bottom moulds with one upper mould slide
left and right by turn, one mould operate
Parameter
|
Type
|
HDTY-1500DS
|
|
INJECTION UNIT
|
|
|
Screw
Diameter, mm
|
50, 55
|
|
Injection
Pressure, Kg/cm2
|
1856, 1534
|
|
Theoretical
Shot volume, cm3
|
471, 570
|
|
Max. Shot
Weight, g/Oz
|
420/14.8, 509/17.9
|
|
Injection
Rate, cm3/sec
|
141, 171
|
|
Temperature
Control, ZONE
|
4
|
|
Material
Hopper Capacity, L
|
30
|
|
CLAMPING UNIT
|
|
|
Clamping
Force, T
|
155
|
|
Opening Force,
T
|
18
|
|
Mold dimensions, mm
|
660×630
|
|
Min Mold
Height, mm
|
300
|
|
Opening
Stroke, mm
|
300
|
|
Max. Open
Daylight, mm
|
600
|
|
Ejector Force,
T
|
5.4
|
|
Ejector stoke,
mm
|
75
|
|
POWER UNIT
|
|
|
Max. Hydraulic
Pressure, Kg/cm2
|
140
|
|
Pump Output, L
|
500
|
|
Pump Motor
Power, kw
|
18.5
|
|
Barrel Heating
Power, kw
|
10.5
|
|
Total Wattage,
kw
|
29
|
|
GENERAL
|
|
|
Machine Weight, T
|
7.6
|
|
Machine Dimensions(L*W*H), m
|
3.7*1.2*4.1
|
|
Slide Plate Stoke, mm
|
800
|

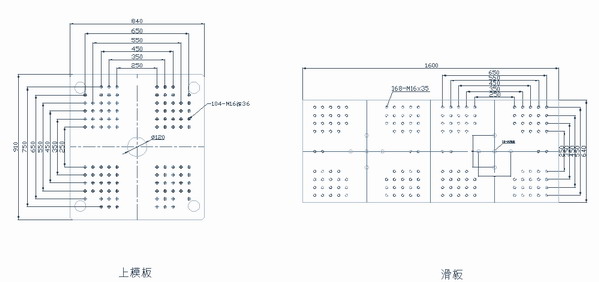

Template
|
