Hengda
Machinery is professional development of rubber machine manufacturers, the
introduction of the European advanced technology, the quality of choice, the
main products: rubber machine, angle rubber machine, vulcanizing machine,
vulcanizing machine and other major series, dozens of products sold nationwide
and around the world 100% to meet customer demand, service-oriented.

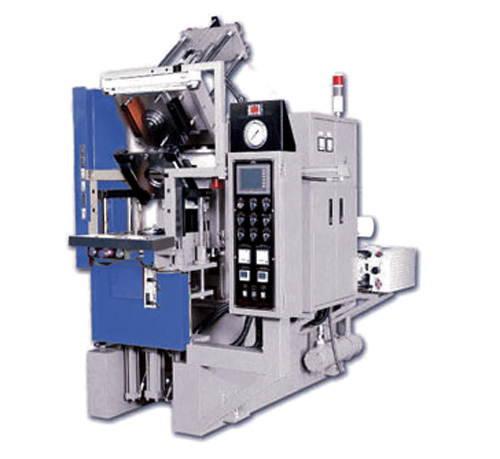

Special rubber seal Product Features:
1, specializes in manufacturing a variety of industrial and automotive oil
seals, mechanical seal and other rubber products;
2, using high vacuum vacuum hood design, can mold is nearly complete vacuum
environment, improve the mold exhaust performance;
|
Type
|
HDTOS-100
|
HDTOS-100
|
|
Clamping
force(Ton)
|
100
|
150
|
|
Opening
force(ton)
|
6
|
6
|
|
Closing Force(ton)
|
7.5
|
7.5
|
|
Moving
Stroke(mm)
|
570
|
670
|
|
Stroke(mm)
|
140
|
140
|
|
Distance
between Hot Plates(mm)
|
200
|
200
|
|
Min Mold
Thickness(mm)
|
80
|
80
|
|
Ejector pin
Stroke(mm)
|
160
|
200
|
|
System
Pressure(Mpa)
|
17
|
17
|
|
Oil Pump Motor
Power(kw)
|
4
|
4*2
|
|
Heating
power(KW)
|
8.4
|
12*2
|
|
Gross
weight(TON)
|
3
|
8
|
|
Machine
size(m)
|
2.2*1*1.9
|
2.7*2.5*2.8
|
|
