Hengda
Machinery is professional development of rubber machine manufacturers, the
introduction of the European advanced technology, the quality of choice, the
main products: rubber machine, angle rubber machine, vulcanizing machine,
vulcanizing machine and other major series, dozens of products sold nationwide
and around the world 100% to meet customer demand, service-oriented

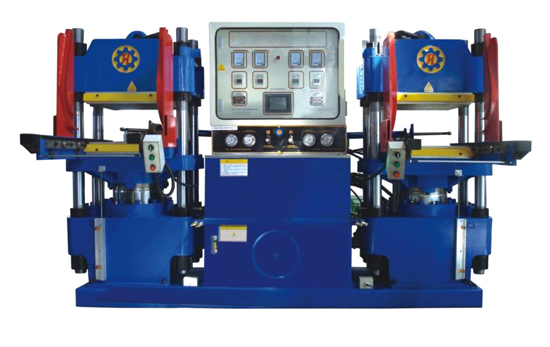

Vacuum vulcanizing machine Features:
1, dual-motor dual-pump double the oil
System design, two working positions controlled independently operate
independently.
2, the former top mold opening and closing
Way, the mold clamping mechanism introduced from the mold is opened in front of
the machine, easy to take products;
3, using high vacuum vacuum hood design, can mold is nearly complete vacuum
environment, improve the mold exhaust performance;
5, vacuum hood within 4 seconds to complete the vacuum of -650mmHG the above,
for molding easy, requiring precision of the finished product is most suitable;
Application:

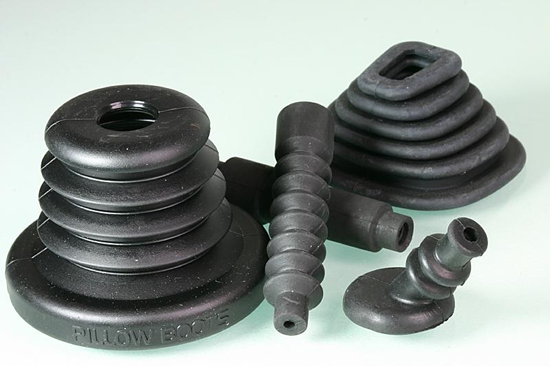

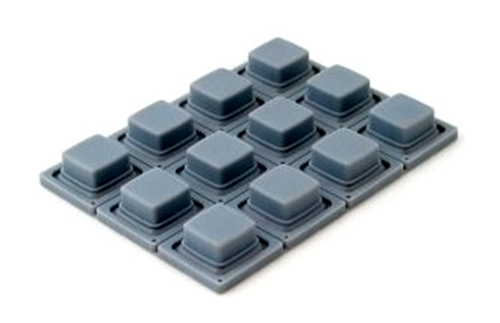

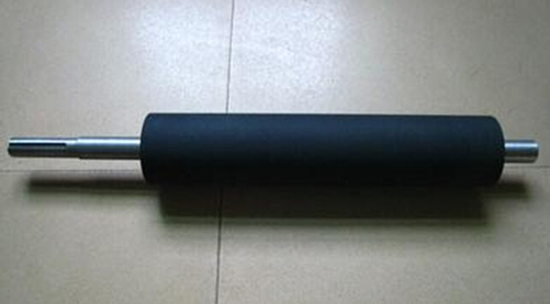

O-ring, packing, keyboard, drum, medical drugs plugs, shock supplies, black
rubber products, daily necessities, gaskets, conductive products, electronic
goods and other aesthetic appearance requirements, sophisticated edge
applications
|
Type
|
HDTVS-200
|
HDTVS-250
|
HDTVS-300
|
|
Clamping
force(Ton)
|
200
|
250
|
300
|
|
Opening
Force(Ton)
|
5
|
6
|
6
|
|
Closing
Force(ton)
|
7
|
8
|
8
|
|
Master cylinder
stroke
|
250
|
250
|
250
|
|
Mold
Stroke(mm)
|
660/840
|
750/840
|
750/840
|
|
Heating
Power(kw)
|
13.5*2
|
18*2
|
18*2
|
|
Oil Pump Motor
Power(kw)
|
7.5*2
|
7.5*2
|
7.5*2
|
|
Ultimate
Vacuum(mbar)
|
0.5
|
0.5
|
0.5
|
|
Pumping Rate
|
100
|
100
|
100
|
|
System
Pressure
|
200
|
200
|
200
|
|
Total
power(KW)
|
42
|
51
|
51
|
|
Gross
weight(TON)
|
9
|
11.7
|
13.5
|
|
Machine
size(m)
|
3.0*2.4*2.0
|
3.5*2.3*2.65
|
3.35*2.55*2.4
|
|
