Characteristic:

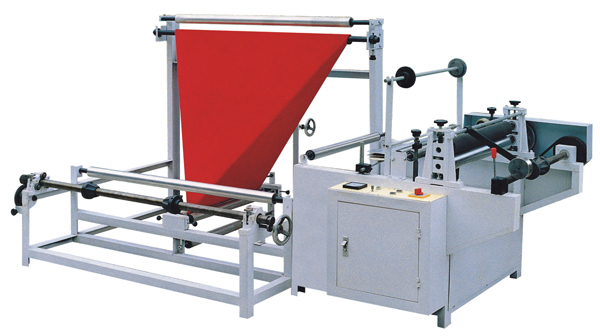

The machine is a working procedure before hot sealing bag making of sheet materials. It is suitable for sheet materials possible for hot cutting such as BOPP and PP.With function of auto double-face glue applying, removing organ bottom and pearly luster film applying. This machine is adopted with current two-phase motor and steeples regulator and also it can be inserted with other materials. For example insert the pearly-luster membrane in the middle of the white membrane
Main technical parameters：
|
Model |
1200 |
1400 |
1600 |
|
Produce Speed (m/min) |
0-60 |
0-60 |
0-60 |
|
Max. width of Raw Material(mm) |
600 |
600 |
600 |
|
Max. diameter of Raw Material（mm） |
Φ600 |
Φ600 |
Φ600 |
|
Max. diameter of Finished Product(mm) |
Φ600 |
Φ600 |
Φ600 |
|
Embossing Temperature(℃) |
0-300 |
0-300 |
0-300 |
|
Voltage of Power Supply(v) |
220 |
220 |
220 |
|
Weight of Machine(kg) |
800 |
900 |
1000 |
|
Overall Dimension(L×W×H)mm |
2400×1500×1500 |
2600×1500×1500 |
2800×1500×1500 |
|
