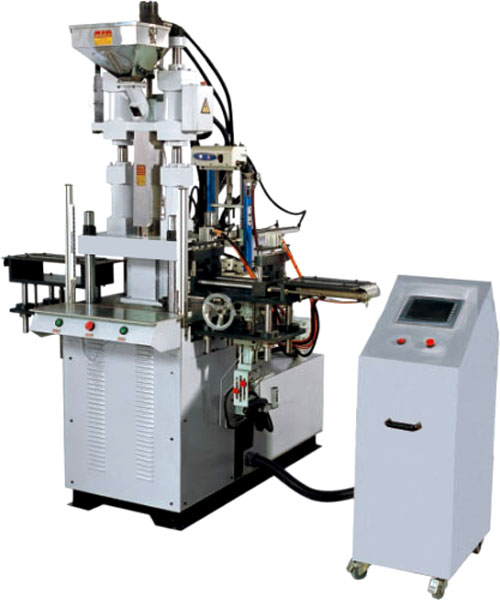

﹡Function:

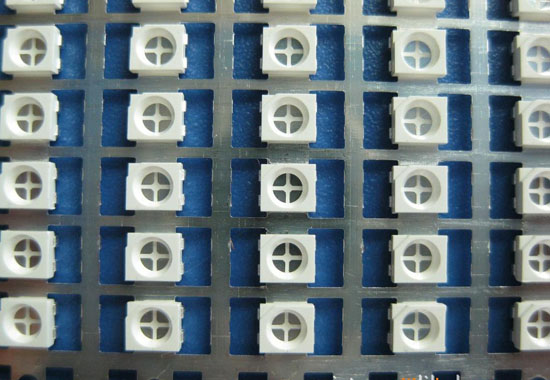

Use for manufacture of the metal stamping tape electronic part, belt auto
transmission inserts products etc.
﹡Vertical
clamping, vertical injection structure, automatically series production
controlled by computer, possess the characteristics of steady, accurate,
smooth.
﹡One
operator manages multiple machines, so as to reduce labor intensity, save
manpower.
﹡Specifications：Clamping
Force: 40T-70T Shot Weight: 30g-60g
|
Type
|
HDTY-700APC
|
|
INJECTION UNIT
|
|
|
Screw Diameter,
mm
|
Ф36, Ф42
|
|
Injection
Pressure, Kg/cm2
|
1732, 1266
|
|
Theoretical Shot
volume, cm3
|
182, 149
|
|
Max. Shot
Weight, g/Oz
|
162/5.7,
222/7.8
|
|
Injection Rate,
cm3/sec
|
87, 119
|
|
Temperature
Control, ZONE
|
3
|
|
Material
Hopper Capacity, L
|
30
|
|
CLAMPING UNIT
|
|
|
Clamping Force,
T
|
70
|
|
Opening Force,
T
|
13.5
|
|
Mold
dimensions, mm
|
500x340
|
|
Min Mold
Height, mm
|
200
|
|
Opening Stroke,
mm
|
250
|
|
Max. Open
Daylight, mm
|
450
|
|
Ejector Force,
T
|
2.7
|
|
Ejector stoke,
mm
|
140
|
|
POWER UNIT
|
|
|
Max. Hydraulic
Pressure, Kg/cm2
|
140
|
|
Pump Output, L
|
230
|
|
Pump Motor
Power, Kw
|
7.5
|
|
Barrel Heating
Power, Kw
|
4.5
|
|
Total Wattage,
Kw
|
12
|
|
GENRAL
|
|
|
Machine
Weight, T
|
2.5
|
|
Machine
Dimensions(L*W*H), m
|
1.9*1.1*3.0
|
|
