﹡Hengda
U TC-DL series pre-branching cable special injection molding machine is
developed for the use of branching cable connector injection.
﹡This
machine shares the features of high efficiency, stable performance, easy to
operate. And has use widely in pre-branching cable industry.

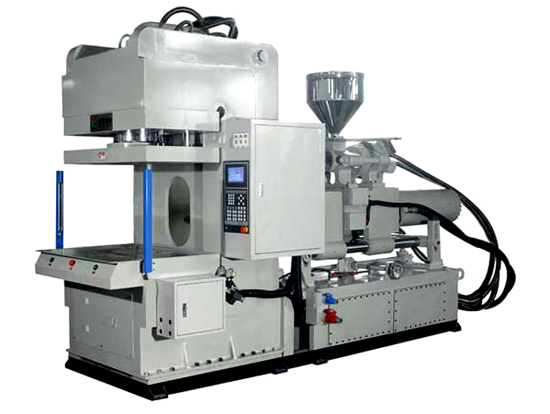

﹡The
structure of TC-DL series pre-branching cable injection molding machine is
vertical clamping, horizontal injection, tearless, three sides open (convenient
for put and take out the cable), clamping force 45T-250T, shot weight
650g-8000g, Chinese/English LCD screen display, proportional pressure and flow
control, strong mechanical structure, high pressure, fast speed, fit for all

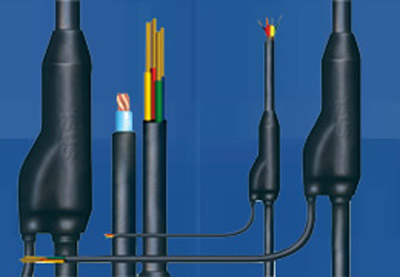

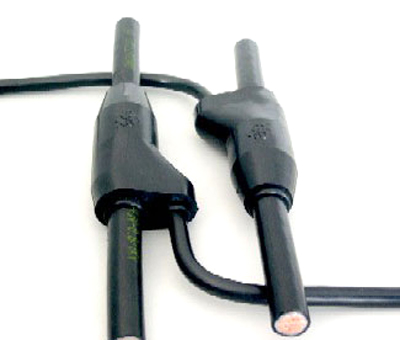

kinds of single core, multi-core pre-branching cable molding.
|
Type
|
HDTC-1200DL
|
|
INJECTION UNIT
|
|
|
Screw Diameter, mm
|
70
|
|
Injection Pressure, Kg/cm2
|
1167
|
|
Theoretical Shot volume, cm3
|
1077
|
|
Max. Shot Weight, g/Oz
|
1308/46
|
|
Injection Rate, cm3/sec
|
327
|
|
Temperature Control, ZONE
|
5
|
|
Material Hopper Capacity, L
|
25
|
|
CLAMPING UNIT
|
|
|
Clamping Force, T
|
75
|
|
Opening Force, T
|
11.5
|
|
Min Mold Height, mm
|
200
|
|
Opening Stroke, mm
|
270
|
|
Max. Open Daylight, mm
|
470
|
|
Nozzle Center Height, mm
|
150±20
|
|
Nozzle Center Distance, mm
|
75
|
|
POWER UNIT
|
|
|
Max. Hydraulic Pressure, Kg/cm2
|
140
|
|
Pump Output, L
|
400
|
|
Pump Motor Power, Kw
|
18.5
|
|
Barrel Heating Power, Kw
|
18
|
|
Total Wattage, Kw
|
36.5
|
|
