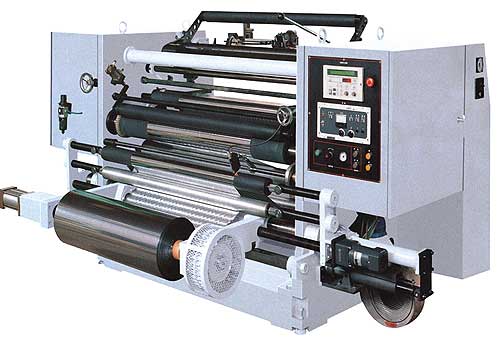

Application:
It is suitable for BOPP, PET, PVC, PE, aluminum foil and paper material etc.Slitting and rewinding. It integrates advanced mechanical, electric, optical and pneumatic technology and components. This machine has been proved to be a high performance such as high speed, high stability, easy operation and high slitting neatness. It is a kind of idea machine for slitting.
Performance and Features：
1.The whole machine is controlled by PLC system. It can set working parameters via touch screen according to the slitting requirement. LCD screen display and monitor the working status. The control system has the function such as start buffer, loose proof and meter counter etc, and it is very easy to operate.
2. Introduce Automatic Tension Control System for unwinding, keep the unwinding tension constant. It is also can controlled by taper control according to slitting requirement. Introduce Japanese MITSUHASHI LPC photoelectric automatic alignment system for Edge Position Control. Track Edge or Track Line automatically to ensure the correct position of the running material.
3. Shaft less Pneumatic Clutch for Unwinding Roll Loading and Hydraulic Pressure Lift Utility (Option).
4. Main drive and rewinding section is driven by two vector control motors separately. Rewinding tension is controlled by PLC system according to the preset parameters and rewinding diameter according to slitting requirement. The control method is automatic digital taper.
5.The rewinding roller is air differential shaft （Goldenrod, or similar）, slip force can be adjusted automatically to accommodate thickness variety of the material for multi-roller slitting.
Main technical variables:
|
Model |
GFQ-1300B |
|
Thickness of Materialmm |
0.012-0.15 |
|
Mechanical speed( m/min) |
300 |
|
Unwinding Diameter(mm) |
3” & 6” Φ700 |
|
Max. unwinding width(mm) |
1300 |
|
Width of slitting and rewinding(mm) |
50-1300 |
|
Rewinding diameter(mm) |
3”Φ148 |
|
Deviation-rectifying method |
Photocell track / Edge track |
|
Automatic Tension control method |
Invariable tension/ Variation tension |
|
Total power (kw) |
15 |
|
Weight of machine(t) |
3.6 |
|
Overall dimension(mm) |
3050×1950×1650 | |
