Applications and features:

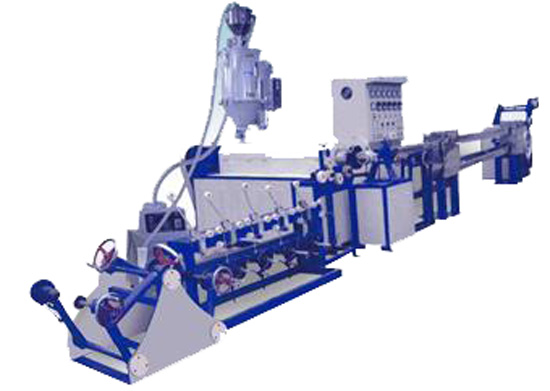

PVC neon-light extrusion machine is used for soft PVC processing and forming, the powder and pellets are pressed and formed to needed tube shapes through bolting. The whole machine has the characteristic of stable operation, low sound smoothly setting up and line speed can be selected at random.
Main technical parameters:
|
Model type |
65 |
70 |
80 |
|
Ratio of length and diameter |
1:25 |
1:27 |
1:25 |
|
Out put (kg/h) |
600-800 |
1100-1500 |
110-1600 |
|
Screw speed of revolution(r/min) |
0-75 |
0-75 |
0-70 |
|
Driving power(kw) |
11 |
15 |
18.5 |
|
Tow power(kw) |
1.5 |
1.5 |
1.5 |
|
Roll-line power(kw) |
2.2 |
2.2 |
2.2 | |
