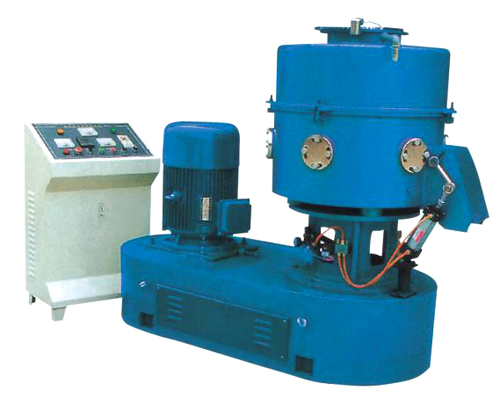

Plastic Crusing And Milling Granulator

Use:

The machine adopts Japanese design technology; use the principles of grinding rapidly, and whisking continuously, milling and fractioning to be heated with multi-knives and fast cooling and contracting. It produces granules from waste materials and angle materials such as the plastic films, filament, ribbons, pieces, soft plastic pipes, foaming materials, and degrading materials, and puts then into reproduction .It is the latest ideal granulating equipment to recycle plastics and reproduce

Main Functions:

1. Recycle the waste materials and leftover bits and pieces of various flexible plastic films, bags, filament, ribbons, pieces, and pipes such as polyvinyl chloride, polyethylene of higher density, and linear polyethylene of lower density, and put them into reproduction.

2. Recycle and reproduce the grinding and granulating of degrading plastic films and angle materials.

3. Grind chemical fiber waste materials, and process the waste filament that has been put into reproductions.

4. The machine is applied in many respects. It can be substitute for blending machine or dryer.

Main Features:

A: Milling, mixture and staining can be processed all in one

B: The machine takes up little area of space

C: It is characterized by simple structure and ease of operation

D: The interstices of the blade can be adjusted with convenience of replacing.

E: It is characterized by high efficient in production and low consumption

F: Granulate at lower temperature, do not damage original molecular structure of materials basically, and do not damage physical performance.

Main Technical Data:

Model

SYD-150

SYD-100

Output Capacity(kg/h)

60-80

30-60

Capacity of Barrel(L)

150

100

Speed of revolution(r/min)

660

660

Main Motor Power(kw)

18

15

Weight of whole machine(kg)

1000

800

Overall Dimensions(mm)

1500×700×14000

1300×600×1300
