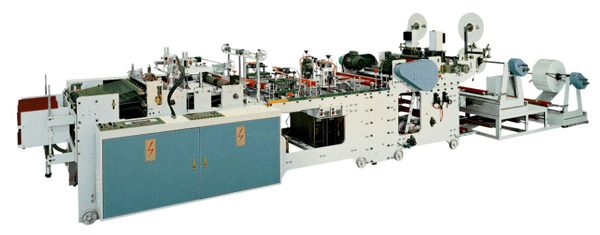

ZXD-500C/D Double-line Data Pocket (Sheet Protector) Sealing And Cutting Machine(Tube Material)

Use:

The raw material is PP tube material .it can increase output for it adopts tow cradles.

Characteristic:

1 It can make all kinds of data pockets. It is two- line production. It may be completed on production line from material in feeding to finished product which will save labor cost and increase output.

2 This machine use YASKAWA servo for pulling material,special cutter and sealer to do synchronous action to ensure the size of data bag be uniform,the sealing line be neat and elegant.

3 It is equipped with photoelectric eye for deviation correcting, belt transmission and AB hoper for finished product.

4 this unit uses all kinds of controls and monitor systems. It may automatically stop with alarm to avoid waste material and to protect the machine when working.

5 the sealing equipment adopts the special designed silica gel strip to make the bags in different specifications and types. The purpose of application covers a wide range.

6 there are two kinds of machine

  1).Model C adopts PCL programmable logic controller and single servo.

  2).model D adopts MIC motion intergrate controller with double servo,the two-line separate.So you can stop one and then one running.

Main technical parameters:

Model type

ZXD-500C/D

Max width of cutting (mm)

235×2

Film thickness(mm)

0.03-0.1

Productivity(pcs/min)

(40-110)×2

Power required(kw)

15/17

Net weight(kg)

3500

Overall dimension(mm)

5600×1400×1650
