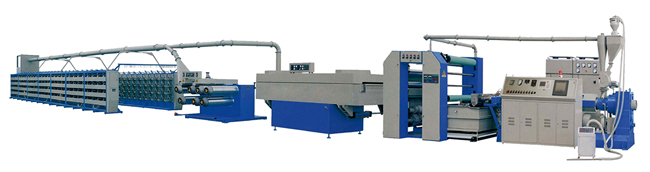

SL-Z High Speed PP Flat Tape Extruder Line

Product information:

The flat yarn making machine is adopted micro-processor control, frequency conversion governor and setting and displaying technical data may be fully digitized on the basis of absorbing international advanced techniques. The main parts use quality products. The line enlarges L/D ratio and adopts new type of separating screw and widens mixing smelt zone on the extruder screw pot which is specially processed using quality steel, fine plasticized effect, low energy consumption in relation to output. For the change filter system of the flat film stretching line, we apply advanced automatic belt change filter. The bake-board is changed into advanced hot drawing oven and principal technical index of the line reaches international advancing level. The winding machine is of friction-free drive and constant tape tension wind, good formation quality of the fiber drum. The line has the performance of high speed, top yield, low energy consumption, good forming quality of the fiber drum. The structure of the line is compact with a pleasing appearance, smooth running, flexible and reliable control, sophisticated manufacture engineering, convenient operation and reliable production.



Use:

it can be used in producing flat fiber form thermoplastic, such as polypropylene (PP) and high-density polyethylene (HDPE) etc. It also can make plastic woven sack, Chemical bag, Foods bag, Rice bag, Sugar Bags, Leno bag, Jumbo bag, FIBC bag, Contain bag, Geo textile, Tarpaulin, Carpet backing tape, Artificial grass tape, etc.

Main technical parameters:

Model

SL-Z65/30-700/112

SL-Z90/33-1000/160

SL-Z100/30-1200/192

SL-Z120/30-1500/256

SL-Z150/30-2000/384

Max. extrusion

capacity(kg/)

180

280

350

490

600

Motor of extruder(kw)

60

90

120

160

250

Dia. of screw(mm)

65

90

100

120

150

Ratio of screw L/D

30:1

33:1

30:1

30:1

30:1

Revolution of screw(r/min)

20~160

20~120

30~120

30~120

20~100

Width of die(mm)

700

1000

1200

1500

2000

Max. winding speed(m/min)

400

400

400

400

400

Range of flat yarn fibre(tex)

60~200

60~200

60~200

60~200

60~200

Stretching ratio

4~10

4~10

4~10

4~10

4~10

Number of winder(spindles)

112

160

192

256

384

System installed capacity(kw)

237

300

320

400

650

Normal operational capacity(kw)

160

180

190

230

460

Weight (About kg)

20000

27000

30000

32000

42000

Overall dimension (L×W×H)(mm)

26500×3200×2600

32000×3200×2600

35000×3200×2600

39000×3200×2600

50000×3700×2600
