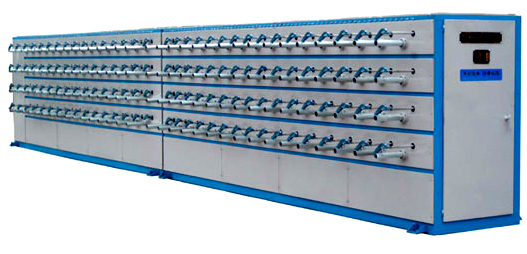

SJ-ST Series Winder

Introduce:

This machine is newly researched and designed by our factory based on the model of combined cam. It winds up the plastic tape by the back and forth movement of the swinging stem driven by the cam. It takes less effort and it runs more stable. With less friction factor and longer durability, the prime motor is 60% less in requirement of power consumption. It adapts to bobbins of Φ38×230mm, and it is the ideal mate of SJ-L series plastic tape extruder.

Main technical parameters:

Model Type

Winder Layers

Spindle
Number

Bobbin Winding Width
(mm)

Winding-Tape Diameter (mm)

Line Speed
(r/min)

Prime
Motor
Power
(kw)

Gross
Motor
Power
(kw)

Overall Dimension (L × W × H) (mm)

Weight (kg)

SJ-ST112/4

4

112

200

≤ 120

30--150

1.5

8

4100×1450×1500

2000

SJ-ST114/4

4

144

200

≤ 120

30--150

1.5

10

5300×1450×1520

2500

SJ-ST176/4

4

176

200

≤ 120

30--150

1.75

12.5

6200×1450×1520

3000

SJ-ST192/4

4

192

200

≤ 120

30--150

2.2

13.5

6700×1450×1520

3200

SJ-ST208/4

4

208

200

≤ 120

30--150

2.2

14.5

7200×1450×1520

3500

SJ-ST240/4

4

240

200

≤ 120

30--150

2.2

17

8200×1450×1520

3900

SJ-ST288/4

4

288

200

≤ 120

30--150

2.2

20

9800×1450×1520

4600

SJ-ST320/4

4

320

200

≤ 120

30--150

3

22.5

10800×1450×1520

5100

SJ-ST320/5

5

320

200

≤ 120

30--150

3

22.5

8600×1450×1600

4900

SJ-ST340/5

5

340

200

≤ 120

30--150

3

24

9100×1450×1600

5200

SJ-ST360/5

5

360

200

≤ 120

30--150

3

25

9800×1450×1600

5400

SJ-ST390/5

5

390

200

≤ 120

30--150

3

27

10500×1450×1600

5900

SJ-ST440/5

5

440

200

≤ 120

30--150

3

31

11700×1450×1600

6500

SJ-ST480/5

5

480

200

≤ 120

30--150

4

33.5

12900×1450×1600

7100

SJ-ST540/5

5

540

200

≤ 120

30--150

4

38

14400×1450×1600

7900
