Product information:

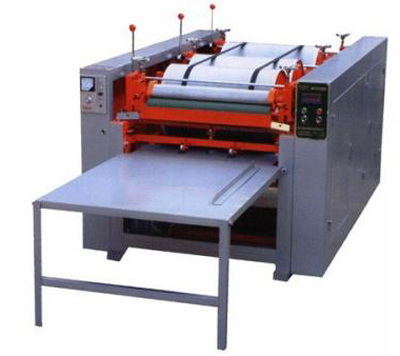

The relief printing machine in this series is suitable for printing picture, character and advertisement directly on the surface of plastic woven bag. It is wide used for printing packing bag of chemicals, chemicals fertilizer, grain, feedstuff, cement, etc.
The control part of this machine adapts photoelectricity control, electromagnetic regulating, automatic imprinting on-off device, electronic automatic counting. The power adapts stepless speed control in order to reach stable operation and wide speed control range. The machine is compact, easy to adjust and operate and maintain.
Application:
Plastic woven sack, Chemical bag, Foods bag, Rice bag, Sugar Bags, Leno bag, Jumbo bag, FIBC bag, Contain bag, etc.
Main technical parameters：
|
Model |
X-YDJ-800II |
X-YDJ-800III |
X-YDJ-1300III |
|
Max. area of material (L×W)mm |
1300×800 |
1300×800 |
2000×1300 |
|
Max. printing area (L×W)mm |
1200×700 |
1200×700 |
1800×1100 |
|
Printing color |
1-2 |
1-3 |
1-3 |
|
Thickness of rubber plate(mm) |
4 |
4 |
4 |
|
Cir. regulating of roller |
360° |
360° |
360° |
|
Dia. of printing roller(mm) |
420+8 |
420+8 |
600+8 |
|
Printing capacity(pcs/h) |
1000-2000 |
1000-2000 |
500-1000 |
|
Motor power(kw) |
1.5 |
2.2 |
4 |
|
Weight (About kg) |
1200 |
1700 |
2500 |
|
Overall dimension (L×W×H)mm |
2700×1320×1270 |
3400×1320×1270 |
4500×2200×1500 |
|
