Use :

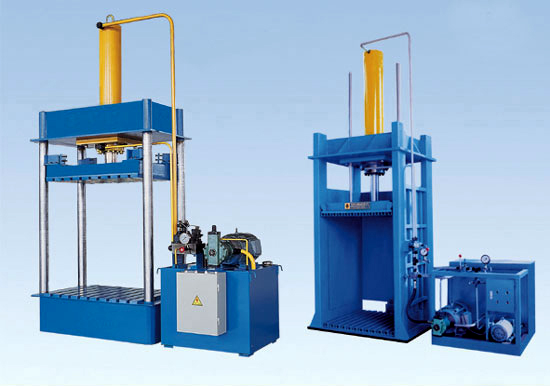

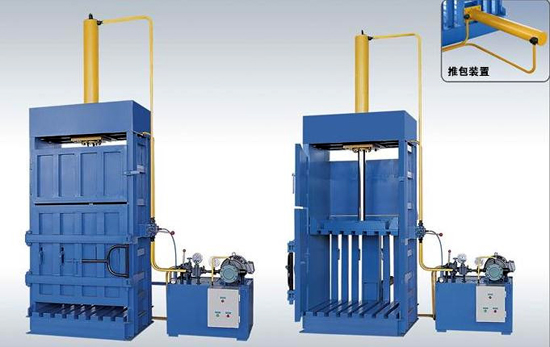

The series packer is mainly used for packing soft articles such as plastic woven bag, ton packing bag, container bag, wasted paper, cotton piece goods, etc. it has reasonable and reliable structure, easy to operate and maintain, big pressure, packing firm, saving time and labor,etc.
Main technical parameters:
|
Model Type |
KS-850 |
KS-1100 |
KS-1200 |
|
Diameter of oil cylinder(mm) |
φ125 |
φ140 |
φ160 |
|
Max working pressure(Mpa) |
6-8 |
13-15 |
15-18 |
|
Stroke of height(mm) |
750 |
900 |
1000 |
|
Height of working(mm) |
900 |
1100 |
1200 |
|
Platform dimensions(mm) |
1200×800 |
1200×800 |
1200×800 |
|
Power(kw) |
2.2 |
7.5 |
11 |
|
Overall dimensions(mm) |
2000×930×2300 |
2200×930×2700 |
2200×930×3000 |
|
Weight(kg) |
1000 |
1500 |
2000 |
|
Model Type |
KS-1300 round guide pillar packer |
KS-1600 waste paper box type |
KS-1900
container bag |
|
Diameter of oil cylinder(mm) |
φ200 |
φ1400 |
φ220 |
|
Max workong pressure(Mpa) |
18-20 |
10-12 |
18-20 |
|
stroke of height(mm) |
1100 |
1100 |
1400 |
|
Height of working(mm) |
1300 |
1600 |
1900 |
|
Platform dimensions(mm) |
1200×800 |
1000×700 |
100×1100 |
|
Power(kw) |
15 |
5.5 |
15 |
|
Overall dimensions(mm) |
2800×900×3500 |
2000×1500×3500 |
2800×2200×4200 |
|
Weight(kg) |
4000 |
3500 |
5500 | |
