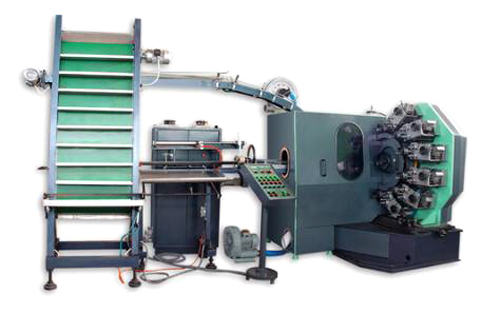

MXDY-6B Six-colored Curved Offset Printing Machine

Main usage :

This  machine  adopts  convex  printing,printing  two-side  colour  words  and  patters in  the  surface  of  plastic  products(circular  cone)with offset  method,and  it  can  print  six-colour  pattern  in  one  time.
This  machine  is  widely  used  for  printing  beverage,sour  milk,ice  cream  cup,canteen  and  other  plastic  production  efficiency.

Performance :

MXDY-6B  type  six-colour  surface offset  printer  adopts  advanced  technologies  at  hom and  abroad,have  great  innovation  in design, manufacture  and  make-up,making  the  machine  flexible,convenient  and  stable  in  operation,use  and  maintenance.

1.This  machine  adopts  the  part  falling  down  into  cup  and  electrical  heating  treatment  before  printing. The  printing  trace  is  clear  and  firm.

2.Main  motor  adopts  three-phase  frequency  conversion  speed  adjustment,synchronous  belt  drive  and  stepless  speed  adjustment,smooth  operation  and  no  noise.

3.Adjustable  ink  supply,the  ink  roller  is  easy  to  adjust,so  the  ink  supply  is  convenient  and  ideal.

4.The  positioning  spring  automatically  adjusts  installation  of  printing  board,convenient  and  easy  to  operate.

5.Printing  roller  has  a  cantilever  which  is  convenient  and  simple.

6.The  receiving  cup  is  automatically  operated:UV  solidification,automatic  counting  and  safety  and  reliabiliy.

7.This  machine  can  form  four  or  five colours  type  for  your  selection.

Main technical prameters:

Model

MXDY-6B

Printing diameter(mm)

40-105

Max. printing length(mm)

110

Max. printing bevel angle

12

Max. printing speed(pcs/h)

13000

Printing size(mm)

116×510×1

Motor power(kw)

4

Total power(kw)

18

Overall demension(mm)

4800×1800×2700
