Introduce:

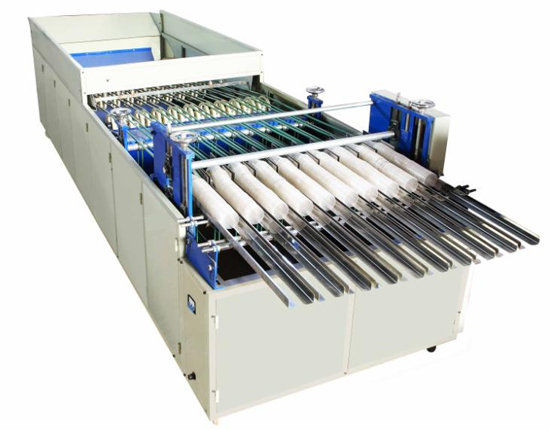

FDY-67 XC Full-automatic Cups Piling up Machine is an assistant cup overlapping fitting for cup making machine. Consuming lower energy, and has high efficiency, lower noises, and it’s also easy to operate. It uses the machine transporting fitting and the structure of the cup, transports the cup after being produced by the cup making machine to the appointed cup overlapping part to overlap the cups, the height of the cups being overlapped can be adjusted to control the number of the cups according to the requirement.
Using the machine can greatly reduce the laboring intensity of the worker, ensure the cleanness and tightness of the cups and solve the difficulty of separating the cups in the behind process, it is an ideal and practical cup overlapping equipment.
Main technical parameters:
|
Model |
FDY-67 XC |
|
Height of cup(mm) |
≤120 |
|
Diameter of cup(mm) |
≤60 |
|
Productive efficiency(pcs/h) |
30000-40000 |
|
Power supply(three phase) |
380V 50Hz |
|
Power of the whole machine(kw) |
1.5 |
|
Size of shape(L×W×H)mm |
4000×1200×1200 |
|
Weight of the whole machine(kg) |
500 |
|
