Characteristics:
Drink straw makers are composed of frequency extruding system, tooling, cooling sink or vacuum cooling sink,drawing and cutting devices etc. It has such features as reasonable structure and steady operation,each part are all fine finished, there are single-color, double-color, three-color and four-color drink straw makers,which all can produce the various colors straws with the diameterfrom 1 to 14mm.
Application:

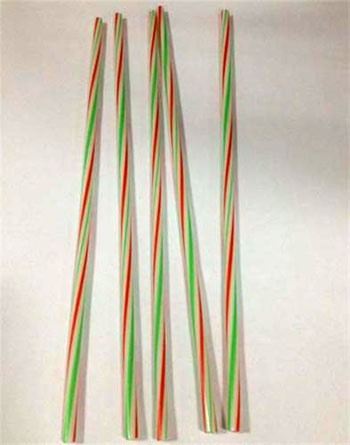

This machine is mainly to produce drink straw,sprinkler pipe,cotton stick,candy stick, tooth pick, the refills of ball point pen and water color pen, toy pipe industrial casing pipe, dropping tube and other small open pipes etc.
It uses the materials such as PE and PP etc.
Main Technical Parameters:
|
Mode |
Monochromatic Straw |
Dichromatic Straw Machine |
Tricolor Straw Machine |
Four color Straw Machine |
|
Screw diameter(mm) |
50 or 55 |
50 or 55 |
50 or 55 |
50 or 55 |
|
Main Screw L/D |
25:1 |
25:1 |
25:1 |
25:1 |
|
Motor(kw) |
11 or 15 |
11 or 15 ± 0.75×1 |
11 or 15 ± 0.75×1 |
11 or 15± 0.75×1 |
|
Transducer(kw) |
0.75×2 |
0.75×2 |
0.75×2 |
0.75×2 |
|
Extruding output(kg) |
10-25 |
10-25 |
10-25 |
10-25 |
|
Product length(mm) |
≥5 |
≥5 |
≥5 |
≥5 |
|
Product out diameter(mm) |
0.8-8 or 0.8-13 |
0.8-8 or 0.8-13 |
0.8-8 or 0.8-13 |
0.8-8 or 0.8-13 |
|
Total weight(kg) |
900 |
1000 |
1200 |
1300 |
|
